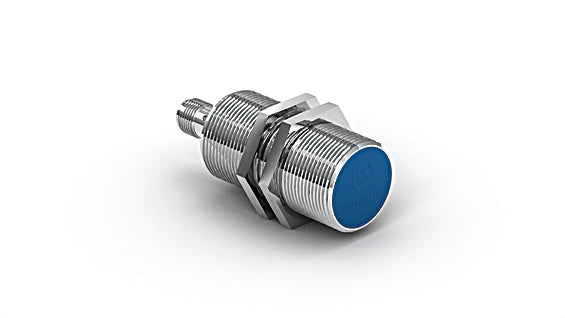

I30H018 - Robust Inductive Sensor with Enhanced Switching Distance

I30H018 - Robust Inductive Sensor with Enhanced Switching Distance

SKU: I30H018 Download PDF

Variant:
  • I30H018 - Robust Inductive Sensor with Enhanced Switching Distance
Now $75.40
BEFORE   $0.00 Now $75.40
Sold out
Web pricing policyShipping calculated at checkout.
IN STOCK
Shipping Available
Free shipping on orders above $1000.* Only on standard purchases of cables and wires.
View full details
Product Information Resources Reviews
Product Information

*Data provided on this page is subject to change based on different manufacturers' variances
** Images are for display purposes only refer to Product Technical Details for accurate information on the product.
In the case the material only comes in a predetermined color or doesn’t come with any color

Description:

Introducing our advanced Inductive Sensors, engineered with enhanced switching distances for optimal performance These sensors boast a robust design, simplifying the installation process while providing dependable measurements With their versatile range, you won’t need additional sensor types, making them perfect for specialized applications The new generation sensors are designed to operate flawlessly even in confined spaces and feature the latest technology for early system error detection, courtesy of ASIC and wenglor weproTec.

Ideal for reliable and efficient operation, these sensors are a smart choice for any application.

Features and Benefits:

    •Increased switching distance.

    •Minimal mounting clearance thanks to wenglor weproTec.

    •Innovative ASIC circuit technology.

    •Integrated error display.

Specifications:

 Switching Distance 15 mm
 Correction Factors Stainless Steel V2A/CuZn/Al 0,70/0,36/0,34
 Mounting Flush
 Mounting A/B/C/D in mm 0/30/45/0
 Mounting B1 in mm 0...11
 Switching Hysteresis < 10 %
 Electrical Data Supply Voltage 10 ... 30 V DC
 Current Consumption (Ub = 24 V) < 10 mA
 Switching Frequency 480 Hz
 Temperature Drift < 10 %
 Temperature Range -40 ... 80 °C
 Switching Output Voltage Drop < 1 V
 Switching Output / Switching Current 150 mA
 Residual Current Switching Output < 100 µA
 Short Circuit Protection yes
 Reverse Polarity Protection yes
 Overload Protection yes
 Protection Class III
 Housing Material Brass, nickel-plated
 Sensing face Plastic, PBT
 Degree of Protection IP67
 Connection M12 × 1; 3-pin
 Safety-relevant Data MTTFd (EN ISO 13849-1) 3,706.54 a
 Packaging unit 1 Piece
 Function Error Indicator yes
 Output NPN NO yes
