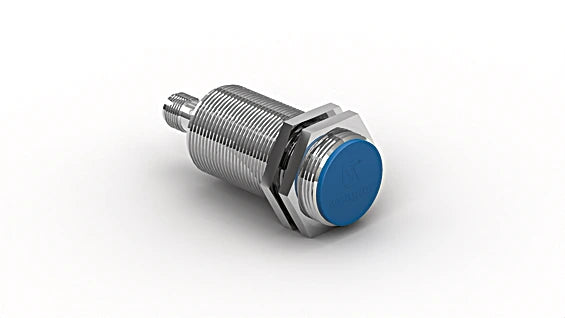

I30H008 - Rugged Inductive Sensor with Enhanced Switching Distance

I30H008 - Rugged Inductive Sensor with Enhanced Switching Distance

SKU: I30H008 Download PDF

Variant:
  • I30H008 - Rugged Inductive Sensor with Enhanced Switching Distance
Now $78.10
BEFORE   $0.00 Now $78.10
Sold out
Web pricing policyShipping calculated at checkout.
IN STOCK
Shipping Available
Free shipping on orders above $1000.* Only on standard purchases of cables and wires.
View full details
Product Information Resources Reviews
Product Information

*Data provided on this page is subject to change based on different manufacturers' variances
** Images are for display purposes only refer to Product Technical Details for accurate information on the product.
In the case the material only comes in a predetermined color or doesn’t come with any color

Description:

Introducing our advanced inductive sensors featuring extended switching distances, designed for durability and straightforward installation while delivering accurate measurements Their extensive range eliminates the need for additional sensor types, allowing versatility for specialized applications This latest generation of sensors not only ensures flawless performance in tight spaces but also incorporates innovative ASIC technology by wenglor weproTec, enabling early detection of system errors to prevent issues before they escalate.

Perfect for anyone seeking reliability and efficiency in their operations.

Features and Benefits:

    •Increased switching distance.

    •Minimal mounting clearance thanks to wenglor weproTec.

    •Innovative ASIC circuit technology.

    •Integrated error display.

Specifications:

 Switching Distance 22 mm
 Correction Factors Stainless Steel V2A/CuZn/Al 0,85/0,35/0,34
 Mounting semi-flush
 Mounting A/B/C/D in mm 35/49/66/7
 Mounting B1 in mm 0...40
 Switching Hysteresis < 10 %
 Supply Voltage 10 ... 30 V DC
 Current Consumption (Ub = 24 V) < 12 mA
 Switching Frequency 320 Hz
 Temperature Drift < 10 %
 Temperature Range -40 ... 80 °C
 Switching Output Voltage Drop < 1 V
 Switching Output / Switching Current 150 mA
 Residual Current Switching Output < 100 µA
 Short Circuit Protection yes
 Reverse Polarity Protection yes
 Overload Protection yes
 Protection Class III
 Housing Material Brass, nickel-plated
 Sensing face Plastic, PBT
 Degree of Protection IP67
 Connection M12 × 1; 4-pin
 MTTFd (EN ISO 13849-1) 3,706.54 a
 Function Error Indicator yes
 Output PNP NC, PNP NO yes
 Adjustable parameters Circuit NC, NC+NO, NO
