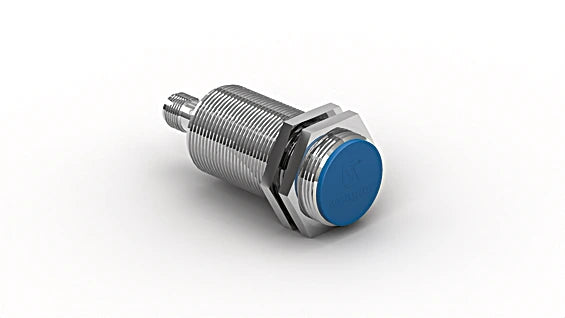

I30H007 - Rugged Inductive Sensor with Long Switching Distance

I30H007 - Rugged Inductive Sensor with Long Switching Distance

SKU: I30H007 Download PDF

Variant:
  • I30H007 - Rugged Inductive Sensor with Long Switching Distance
Now $76.90
BEFORE   $0.00 Now $76.90
Sold out
Web pricing policyShipping calculated at checkout.
IN STOCK
Shipping Available
Free shipping on orders above $1000.* Only on standard purchases of cables and wires.
View full details
Product Information Resources Reviews
Product Information

*Data provided on this page is subject to change based on different manufacturers' variances
** Images are for display purposes only refer to Product Technical Details for accurate information on the product.
In the case the material only comes in a predetermined color or doesn’t come with any color

Description:

Introducing our advanced inductive sensors, engineered for extended switching distances and built to endure Their robust design ensures seamless installation and dependable measurements, making them an ideal choice for diverse applications With their wide operational range, these sensors eliminate the need for multiple types, simplifying your systems The latest generation also features enhanced capabilities for detecting system faults early, thanks to the integration of ASIC and wenglor weproTec technology.

Experience reliability and efficiency in tight spaces with our cutting-edge sensors.

Features and Benefits:

    •Increased switching distance.

    •Minimal mounting clearance thanks to wenglor weproTec.

    •Innovative ASIC circuit technology.

    •Integrated error display.

Specifications:

 Switching Distance 22 mm
 Correction Factors 0.85/0.35/0.34
 Mounting semi-flush
 Mounting Dimensions A/B/C/D 35/49/66/7 mm
 Mounting B1 0...40 mm
 Switching Hysteresis < 10 %
 Supply Voltage 10 ... 30 V DC
 Current Consumption (Ub = 24 V) < 12 mA
 Switching Frequency 320 Hz
 Temperature Drift < 10 %
 Temperature Range -40 ... 80 °C
 Voltage Drop < 1 V
 Switching Output / Switching Current 150 mA
 Residual Current Switching Output < 100 µA
 Short Circuit Protection yes
 Reverse Polarity Protection yes
 Overload Protection yes
 Protection Class III
 Housing Material Brass, nickel-plated
 Sensing face Plastic, PBT
 Degree of Protection IP67
 Connection M12 × 1; 3-pin
 MTTFd (EN ISO 13849-1) 3,706.54 a
 Function Error Indicator yes
 Output PNP NO yes
