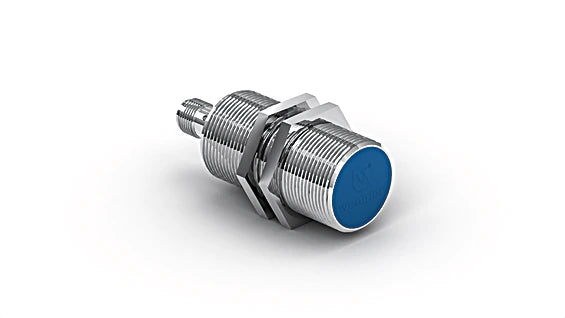

I30H004 - Robust Inductive Sensor with Extended Range & Easy Installation

I30H004 - Robust Inductive Sensor with Extended Range & Easy Installation

SKU: I30H004 Download PDF

Variant:
  • I30H004 - Robust Inductive Sensor with Extended Range & Easy Installation
Now $76.90
BEFORE   $0.00 Now $76.90
Sold out
Web pricing policyShipping calculated at checkout.
IN STOCK
Shipping Available
Free shipping on orders above $1000.* Only on standard purchases of cables and wires.
View full details
Product Information Resources Reviews
Product Information

*Data provided on this page is subject to change based on different manufacturers' variances
** Images are for display purposes only refer to Product Technical Details for accurate information on the product.
In the case the material only comes in a predetermined color or doesn’t come with any color

Description:

Introducing the advanced Inductive Sensors, engineered for superior switching distances and characterized by their durable construction and straightforward installation Their extensive range makes them versatile enough for various applications, eliminating the need for multiple sensor types This innovative generation not only allows for the flawless operation of several sensors within tight spaces but also features smart detection of system errors through ASIC and wenglor weproTec technology, ensuring reliability before issues arise.

Features and Benefits:

    •Increased switching distance.

    •Minimal mounting clearance thanks to wenglor weproTec.

    •Innovative ASIC circuit technology.

    •Integrated error display.

Specifications:

 Switching Distance 15 mm
 Correction Factors 0,70/0,36/0,34
 Mounting Flush
 Mounting A/B/C/D in mm 0/30/45/0
 Mounting B1 in mm 0...11
 Switching Hysteresis < 10 %
 Supply Voltage 10 ... 30 V DC
 Current Consumption (Ub = 24 V) < 10 mA
 Switching Frequency 480 Hz
 Temperature Drift < 10 %
 Temperature Range -40 ... 80 °C
 Switching Output Voltage Drop < 1 V
 Switching Output / Switching Current 150 mA
 Residual Current Switching Output < 100 µA
 Short Circuit Protection yes
 Reverse Polarity Protection yes
 Overload Protection yes
 Protection Class III
 Housing Material Brass, nickel-plated
 Sensing face Plastic, PBT
 Degree of Protection IP67
 Connection M12 × 1; 4-pin
 MTTFd (EN ISO 13849-1) 3,706.54 a
 Function Error Indicator yes
 Output PNP NC, PNP NO yes
 Adjustable parameters Circuit NC, NC+NO, NO
