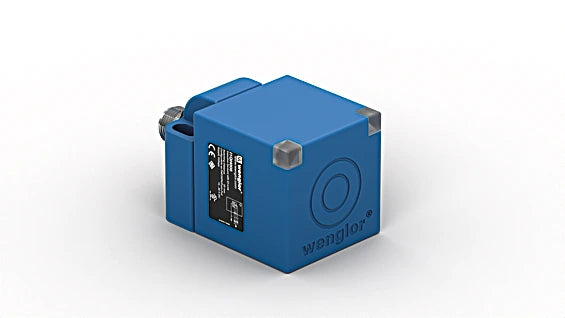

I1QH006 - Versatile Inductive Sensor with IO-Link Integration and 3 Switching Distances

I1QH006 - Versatile Inductive Sensor with IO-Link Integration and 3 Switching Distances

SKU: I1QH006 Download PDF

Variant:
  • I1QH006 - Versatile Inductive Sensor with IO-Link Integration and 3 Switching Distances
Now $97.90
BEFORE   $0.00 Now $97.90
Sold out
Web pricing policyShipping calculated at checkout.
IN STOCK
Shipping Available
Free shipping on orders above $1000.* Only on standard purchases of cables and wires.
View full details
Product Information Resources Reviews
Product Information

*Data provided on this page is subject to change based on different manufacturers' variances
** Images are for display purposes only refer to Product Technical Details for accurate information on the product.
In the case the material only comes in a predetermined color or doesn’t come with any color

Description:

Introducing our advanced Inductive Sensors, which come with an integrated IO-Link interface for seamless network connectivity Users can choose from three adjustable switching distances and two selectable switching frequencies, making customization easier than ever Additionally, the sensors support PNP/NPN and NO/NC/antivalent configurations as needed, effectively minimizing variant options while enhancing functionality.

Perfect for versatile applications, these sensors are engineered for reliability and efficiency.

Features and Benefits:

    •Easy sensor configuration using the IO-Link interface.

    •Minimal mounting clearance thanks to wenglor weproTec.

    •Innovative ASIC circuit technology.

    •Integrated error display and error output.

    •Adjustable switching distance.

Specifications:

 Switching Distance 40 mm
 Standard Target 120 × 120 mm
 Correction Factors Stainless Steel V2A/CuZn/Al 0,75/0,32/0,33
 Mounting Non-flush
 Mounting A/B/C/D in mm 90/110/120/40
 Mounting B1 in mm 0...60
 Switching Hysteresis < 10 %
 Supply Voltage 10 ... 30 V DC
 Supply Voltage with IO-Link 18 ... 30 V DC
 Current Consumption (Ub = 24 V) < 15 mA
 Switching Frequency 400 Hz
 Temperature Drift < 10 %
 Temperature Range -40 ... 80 °C
 Switching Output Voltage Drop < 1 V
 Switching Output / Switching Current 150 mA
 Residual Current Switching Output < 100 µA
 Short Circuit Protection yes
 Overload Protection yes
 Reverse Polarity Protection yes
 Interface IO-Link V1.1
 Protection Class III
 Housing Material Plastic, ABS
 Sensing face Plastic, PBT
 Full Encapsulation yes
 Degree of Protection IP67
 Connection M12 × 1; 4-pin
 MTTFd (EN ISO 13849-1) 3,706.54 a
 Function Error Indicator yes
 Programmable switching distance 30/35/40 mm
 Programmable switching frequency yes
 Output IO-Link yes
 Error Output yes
 PNP NO yes
 Adjustable parameters Output Error Output
 Push-pull NPN PNP Circuit NC
 NC/NO NO
