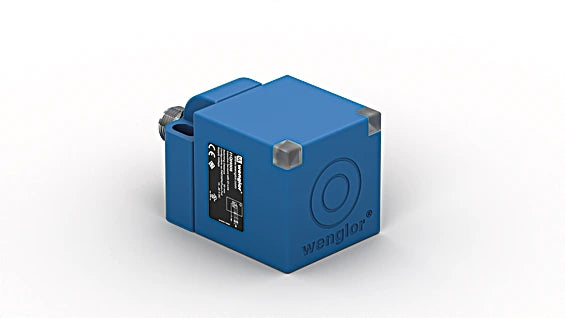

I1QH002 - Rugged Inductive Sensor with Extended Range for Smart Applications

I1QH002 - Rugged Inductive Sensor with Extended Range for Smart Applications

SKU: I1QH002 Download PDF

Variant:
  • I1QH002 - Rugged Inductive Sensor with Extended Range for Smart Applications
Now $71.30
BEFORE   $0.00 Now $71.30
Sold out
Web pricing policyShipping calculated at checkout.
IN STOCK
Shipping Available
Free shipping on orders above $1000.* Only on standard purchases of cables and wires.
View full details
Product Information Resources Reviews
Product Information

*Data provided on this page is subject to change based on different manufacturers' variances
** Images are for display purposes only refer to Product Technical Details for accurate information on the product.
In the case the material only comes in a predetermined color or doesn’t come with any color

Description:

Experience the reliability of our advanced inductive sensors, which feature enhanced switching distances and a robust design for effortless installation Their broad detection range eliminates the need for extra sensor types, making them versatile for various specialized applications This latest generation not only enables seamless operation of multiple sensors in confined spaces but also incorporates innovative technology from ASIC and wenglor weproTec to detect potential system errors proactively.

Features and Benefits:

    •Increased switching distance.

    •Minimal mounting clearance thanks to wenglor weproTec.

    •Innovative ASIC circuit technology.

    •Integrated error display.

Specifications:

 Switching Distance 20 mm
 Correction Factors Stainless Steel V2A/CuZn/Al 0,83/0,32/0,31
 Mounting Flush
 Mounting A/B/C/D in mm 0/40/60/0
 Mounting B1 in mm 6...35
 Switching Hysteresis < 10 %
 Supply Voltage 10 ... 30 V DC
 Current Consumption (Ub = 24 V) < 10 mA
 Switching Frequency 460 Hz
 Temperature Drift < 10 %
 Temperature Range -40 ... 80 °C
 Voltage Drop < 1 V
 Switching Current 150 mA
 Residual Current Switching Output < 100 µA
 Short Circuit Protection yes
 Reverse Polarity Protection yes
 Overload Protection yes
 Protection Class III
 Housing Material Plastic, ABS
 Sensing face Plastic, PBT
 Degree of Protection IP67
 Connection M12 × 1; 4-pin
 MTTFd (EN ISO 13849-1) 3,706.54 a
 Function Error Indicator yes
 Output PNP NC, PNP NO yes
 Adjustable parameters Circuit NC, NC+NO, NO
 Packaging unit 1 Piece
