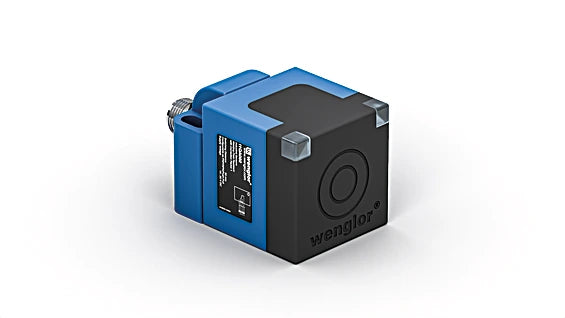

I1QA002 - Reliable Inductive Sensor with Extended Range & High Switching Frequency

I1QA002 - Reliable Inductive Sensor with Extended Range & High Switching Frequency

SKU: I1QA002 Download PDF

Variant:
  • I1QA002 - Reliable Inductive Sensor with Extended Range & High Switching Frequency
Now $83.40
BEFORE   $0.00 Now $83.40
Sold out
Web pricing policyShipping calculated at checkout.
IN STOCK
Shipping Available
Free shipping on orders above $1000.* Only on standard purchases of cables and wires.
View full details
Product Information Resources Reviews
Product Information

*Data provided on this page is subject to change based on different manufacturers' variances
** Images are for display purposes only refer to Product Technical Details for accurate information on the product.
In the case the material only comes in a predetermined color or doesn’t come with any color

Description:

Discover the advanced technology of welding field resistant inductive sensors featuring a correction factor of 1 These sensors are engineered for optimal performance, boasting extended switching distances that enhance reliable object detection They support high switching frequencies, making them ideal for fast-paced applications, and can operate effectively across a wide temperature range to adapt to varying environmental conditions.

Additionally, the integrated switching status LED aids in quick diagnostics, minimizing system downtime To ease installation, these sensors come in both flush and non-flush mounting options, catering to your specific needs.

Features and Benefits:

    •Extended temperature range.

    •Greatest possible switching distances with correction factor 1.

    •Very good magnetic and electromagnetic immunity.

    •Very high switching frequency.

Specifications:

 Switching Distance 50 mm
 Correction Factors Stainless Steel V2A/CuZn/Al 1.01/1.01/1.01
 Mounting Non-flush
 Mounting A/B/C/D in mm 60/150/150/40
 Installation D1 in mm 90
 Switching Hysteresis < 15 %
 Supply Voltage 10 ... 30 V DC
 Current Consumption (Ub = 24 V) < 15 mA
 Switching Frequency 1,500 Hz
 Temperature Drift (-25 °C < Tu < 60 °C) 10 %
 Temperature Drift (Tu < -25 °C, Tu > 60 °C) 20 %
 Temperature Range -40 ... 80 °C
 Voltage Drop < 2.5 V
 Switching Current 200 mA
 Resistant to Magnetic Fields 200 mT
 Short Circuit Protection yes
 Reverse Polarity Protection yes
 Overload Protection yes
 Protection Class II
 Housing Material Plastic, ABS
 Sensing face Plastic, PBT
 Sensor Cap Plastic, PBT, PTFE
 Welding Field Resistant yes
 Full Encapsulation yes
 Degree of Protection IP67
 Connection M12 × 1; 4-pin
 MTTFd (EN ISO 13849-1) 2,099.41 a
 Packaging unit 1 Piece
 Function Error Indicator yes
 Output PNP NC, PNP NO yes
 Adjustable parameters Circuit NC, NC+NO, NO
