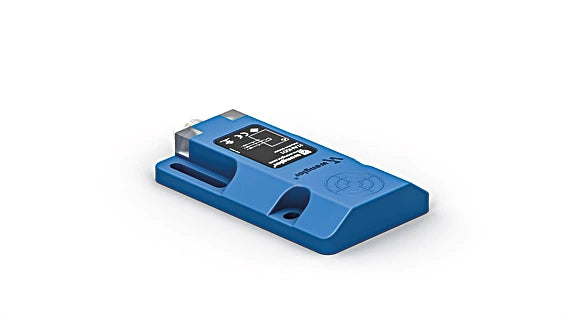

I1DH007 - Rugged Inductive Sensor with Extended Range and Easy Installation

I1DH007 - Rugged Inductive Sensor with Extended Range and Easy Installation

SKU: I1DH007 Download PDF

Variant:
  • I1DH007 - Rugged Inductive Sensor with Extended Range and Easy Installation
Now $59.20
BEFORE   $0.00 Now $59.20
Sold out
Web pricing policyShipping calculated at checkout.
IN STOCK
Shipping Available
Free shipping on orders above $1000.* Only on standard purchases of cables and wires.
View full details
Product Information Resources Reviews
Product Information

*Data provided on this page is subject to change based on different manufacturers' variances
** Images are for display purposes only refer to Product Technical Details for accurate information on the product.
In the case the material only comes in a predetermined color or doesn’t come with any color

Description:

Experience reliable performance with our advanced Inductive Sensors, engineered for enhanced switching distances Their robust construction allows for easy installation and dependable measurements Thanks to their extensive range, multiple sensor types become unnecessary, enabling their use in various specialized applications The latest generation guarantees error-free functionality in compact spaces and incorporates ASIC technology from wenglor weproTec, which helps in early detection of system errors, ensuring your operations run smoothly.

Features and Benefits:

    •Increased switching distance.

    •Minimal mounting clearance thanks to wenglor weproTec.

    •Innovative ASIC circuit technology.

    •Integrated error display.

Specifications:

 Switching Distance: 6 mm
 Correction Factors Stainless Steel V2A/CuZn/Al: 1,27/0,64/0,61
 Mounting: Flush
 Mounting A/B/C/D in mm: 0/14/18/0
 Mounting B1 in mm: 0...6
 Switching Hysteresis: < 10 %
 Supply Voltage: 10 ... 30 V DC
 Current Consumption (Ub = 24 V): < 10 mA
 Switching Frequency: 910 Hz
 Temperature Drift: < 10 %
 Temperature Range: -40 ... 80 °C
 Voltage Drop (Switching Output): < 1 V
 Switching Output / Switching Current: 150 mA
 Residual Current (Switching Output): 100 µA
 Short Circuit Protection: yes
 Reverse Polarity Protection: yes
 Overload Protection: yes
 Protection Class: III
 Housing Material: Plastic, PBT
 Sensing face: Plastic, PBT
 Degree of Protection: IP67
 Connection: M8 × 1; 3-pin
 MTTFd (EN ISO 13849-1): 3,706.54 a
 Packaging unit: 1 Piece
 Error Indicator (Function): yes
 Output NPN NC: yes
