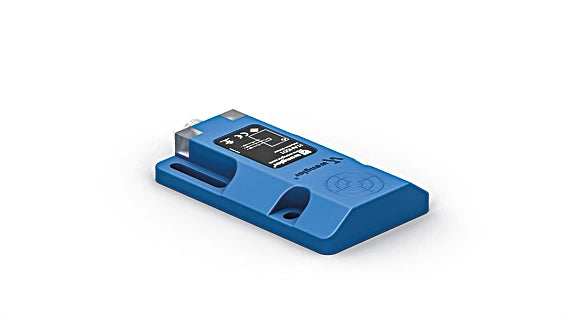

I1DH006 - Rugged Inductive Sensor for Wide Switching Distance and Reliable Performance

I1DH006 - Rugged Inductive Sensor for Wide Switching Distance and Reliable Performance

SKU: I1DH006 Download PDF

Variant:
  • I1DH006 - Rugged Inductive Sensor for Wide Switching Distance and Reliable Performance
Now $59.20
BEFORE   $0.00 Now $59.20
Sold out
Web pricing policyShipping calculated at checkout.
IN STOCK
Shipping Available
Free shipping on orders above $1000.* Only on standard purchases of cables and wires.
View full details
Product Information Resources Reviews
Product Information

*Data provided on this page is subject to change based on different manufacturers' variances
** Images are for display purposes only refer to Product Technical Details for accurate information on the product.
In the case the material only comes in a predetermined color or doesn’t come with any color

Description:

These advanced inductive sensors offer enhanced switching distances, coupled with a robust construction that ensures easy installation and dependable measurements Their extensive operational range eliminates the need for multiple sensor types, making them suitable for specialized applications Moreover, this new generation allows for the simultaneous operation of several sensors in confined spaces, along with the ability to detect system errors proactively, thanks to the innovative ASIC technology by wenglor weproTec.

Features and Benefits:

    •Increased switching distance.

    •Innovative ASIC circuit technology.

    •Integrated error display.

    •Minimal mounting clearance thanks to wenglor weproTec.

Specifications:

 Switching Distance 6 mm
 Correction Factors Stainless Steel V2A/CuZn/Al 1,27/0,64/0,61
 Mounting Flush
 Mounting A/B/C/D in mm 0/14/18/0
 Mounting B1 in mm 0...6
 Switching Hysteresis < 10 %
 Supply Voltage 10 ... 30 V DC
 Current Consumption (Ub = 24 V) < 10 mA
 Switching Frequency 910 Hz
 Temperature Drift < 10 %
 Temperature Range -40 ... 80 °C
 Switching Output / Voltage Drop < 1 V
 Switching Current 150 mA
 Residual Current Switching Output 100 µA
 Short Circuit Protection yes
 Reverse Polarity Protection yes
 Overload Protection yes
 Protection Class III
 Housing Material Plastic, PBT
 Sensing face Plastic, PBT
 Degree of Protection IP67, IP68
 Connection M8 × 1; 3-pin
 MTTFd (EN ISO 13849-1) 3,706.54 a
 Function Error Indicator yes
 Output NPN NO yes
