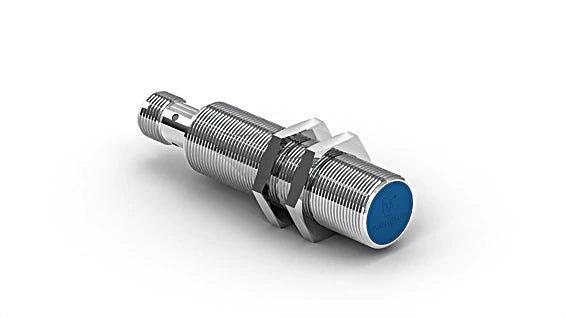

I18H028 - Rugged Inductive Sensor with Long Switching Distance and Easy Installation

I18H028 - Rugged Inductive Sensor with Long Switching Distance and Easy Installation

SKU: SKU: I18H028 Download PDF

Variant:
  • I18H028 - Rugged Inductive Sensor with Long Switching Distance and Easy Installation
Regular price Now $67.20
Regular price BEFORE   $0.00 Sale price Now $67.20
Sold out
IN STOCK
Shipping Available
Free shipping on orders above $1000.* Only on standard purchases of cables and wires.
View full details
Product Information

*Data provided on this page is subject to change based on different manufacturers' variances
** Images are for display purposes only refer to Product Technical Details for accurate information on the product.
In the case the material only comes in a predetermined color or doesn’t come with any color

Description:

Introducing our advanced inductive sensors, engineered with enhanced switching distances and a robust construction for durability Their straightforward installation process and reliable measurements make them a valuable asset for various applications With a wide operational range, you can minimize the need for additional sensors while executing specialized tasks effectively The latest generation of these sensors ensures smooth operation even in compact spaces and can proactively identify system errors with the help of ASIC technology and wenglor weproTec, ensuring you address issues before they escalate.

Features and Benefits:

    •Increased switching distance.

    •Minimal mounting clearance thanks to wenglor weproTec.

    •Innovative ASIC circuit technology.

    •Integrated error display.

Specifications:

 Switching Distance 8 mm
 Correction Factors Stainless Steel V2A/CuZn/Al 0.91/0.45/0.43
 Mounting Flush
 Mounting A/B/C/D in mm 0/24/24/0
 Mounting B1 in mm 2...14
 Switching Hysteresis < 10 %
 Supply Voltage 10 ... 30 V DC
 Current Consumption (Ub = 24 V) < 6 mA
 Switching Frequency 590 Hz
 Temperature Drift < 10 %
 Temperature Range -40 ... 80 °C
 Voltage Drop < 1 V
 Switching Current 150 mA
 Residual Current Switching Output < 100 µA
 Short Circuit Protection yes
 Reverse Polarity Protection yes
 Overload Protection yes
 Protection Class III
 Housing Material Brass, nickel-plated
 Sensing face Plastic, PBT
 Degree of Protection IP67
 Connection M12 × 1; 4-pin
 MTTFd (EN ISO 13849-1) 3,706.54 a
 Error Indicator yes
 Output PNP NC, PNP NO
 Adjustable parameters NC, NC+NO, NO
