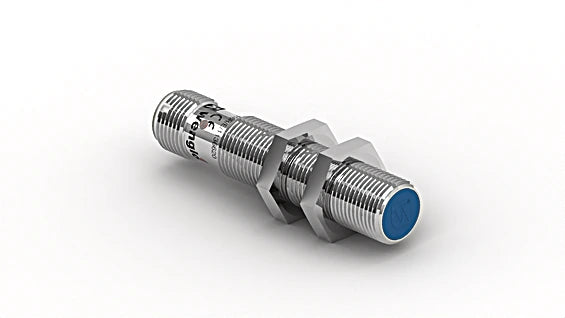

I12H059 - Rugged Inductive Sensor with Extended Range for Reliable Measurements

I12H059 - Rugged Inductive Sensor with Extended Range for Reliable Measurements

SKU: SKU: I12H059 Download PDF

Variant:
  • I12H059 - Rugged Inductive Sensor with Extended Range for Reliable Measurements
Regular price Now $65.60
Regular price BEFORE   $0.00 Sale price Now $65.60
Sold out
IN STOCK
Shipping Available
Free shipping on orders above $1000.* Only on standard purchases of cables and wires.
View full details
Product Information

*Data provided on this page is subject to change based on different manufacturers' variances
** Images are for display purposes only refer to Product Technical Details for accurate information on the product.
In the case the material only comes in a predetermined color or doesn’t come with any color

Description:

Discover the power of enhanced performance with these robust Inductive Sensors, designed for longer switching distances Featuring a durable construction and straightforward installation, they deliver reliable measurement results Their extensive range eliminates the need for multiple sensor types, making them versatile enough for a variety of specialized applications The latest generation ensures error-free operation of multiple sensors in tight spaces, while advanced ASIC technology and wenglor weproTec capabilities allow for early detection of system errors, safeguarding your operations.

Features and Benefits:

    •Increased switching distance.

    •Minimal mounting clearance thanks to wenglor weproTec.

    •Innovative ASIC circuit technology.

    •Integrated error display.

Specifications:

 Switching Distance 4 mm
 Correction Factors Stainless Steel V2A/CuZn/Al 1,02/0,52/0,50
 Mounting Flush
 Mounting A/B/C/D in mm 0/8/12/0
 Mounting B1 in mm 0...2
 Switching Hysteresis < 10 %
 Supply Voltage 10 ... 30 V DC
 Current Consumption (Ub = 24 V) < 6 mA
 Switching Frequency 1,150 Hz
 Temperature Drift < 10 %
 Temperature Range -40 ... 80 °C
 Voltage Drop < 1 V
 Switching Current 150 mA
 Residual Current Switching Output < 100 µA
 Short Circuit Protection yes
 Reverse Polarity Protection yes
 Overload Protection yes
 Protection Class III
 Housing Material Brass, nickel-plated
 Sensing face Plastic, PBT
 Degree of Protection IP67
 Connection M12 × 1; 3-pin
 MTTFd (EN ISO 13849-1) 3,706.54 a
 Function Error Indicator yes
 Output NPN NC yes
 Packaging unit 1 Piece
