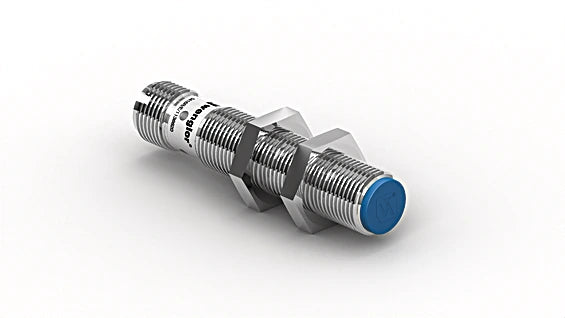

I12H026 - Reliable Inductive Sensor with Increased Switching Distance

I12H026 - Reliable Inductive Sensor with Increased Switching Distance

SKU: I12H026 Download PDF

Variant:
  • I12H026 - Reliable Inductive Sensor with Increased Switching Distance
Now $65.80
BEFORE   $0.00 Now $65.80
Sold out
Web pricing policyShipping calculated at checkout.
IN STOCK
Shipping Available
Free shipping on orders above $1000.* Only on standard purchases of cables and wires.
View full details
Product Information Resources Reviews
Product Information

*Data provided on this page is subject to change based on different manufacturers' variances
** Images are for display purposes only refer to Product Technical Details for accurate information on the product.
In the case the material only comes in a predetermined color or doesn’t come with any color

Description:

Experience superior performance with our advanced inductive sensors, designed for increased switching distances These sensors boast a robust construction, ensuring longevity and reliability in various applications With an extensive range, they eliminate the need for multiple sensor types, making them versatile for specialized situations Furthermore, the latest technology from ASIC and wenglor weproTec allows for early detection of system errors, facilitating seamless operation even in compact spaces.

Enjoy the ease of installation and the assurance of precise measurements with this innovative sensor solution.

Features and Benefits:

    •Increased switching distance.

    •Minimal mounting clearance thanks to wenglor weproTec.

    •Innovative ASIC circuit technology.

    •Integrated error display.

Specifications:

 Switching Distance 6 mm
 Correction Factors Stainless Steel V2A/CuZn/Al 1.01/0.54/0.52
 Mounting semi-flush
 Mounting A/B/C/D in mm 12/20/18/4
 Mounting B1 in mm 0...5
 Switching Hysteresis < 10 %
 Supply Voltage 10 ... 30 V DC
 Current Consumption (Ub = 24 V) < 8 mA
 Switching Frequency 560 Hz
 Temperature Drift < 10 %
 Temperature Range -40 ... 80 °C
 Voltage Drop < 1 V
 Switching Current 150 mA
 Residual Current Switching Output < 100 µA
 Short Circuit Protection yes
 Reverse Polarity Protection yes
 Overload Protection yes
 Protection Class III
 Housing Material Brass, nickel-plated
 Sensing face Plastic, PBT
 Degree of Protection IP67
 Connection M12 × 1; 3-pin
 MTTFd (EN ISO 13849-1) 3,706.54 a
 Function Error Indicator yes
 Output PNP NO yes
