Home / SENSORS / I12H023 - Rugged Inductive Sensor with Enhanced Switching Distance
1 1

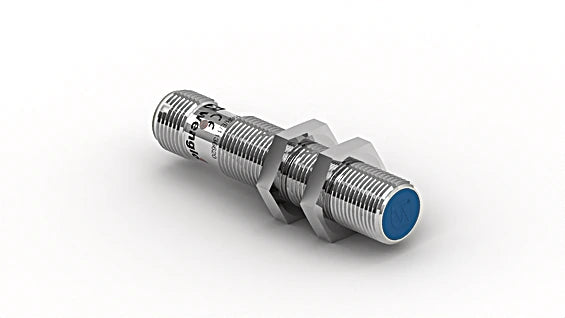

I12H023 - Rugged Inductive Sensor with Enhanced Switching Distance

I12H023 - Rugged Inductive Sensor with Enhanced Switching Distance

SKU: I12H023 Download PDF

Variant:
  • I12H023 - Rugged Inductive Sensor with Enhanced Switching Distance
Now $65.80
BEFORE   $0.00 Now $65.80
Sold out
Web pricing policyShipping calculated at checkout.
IN STOCK
Shipping Available
Free shipping on orders above $1000.* Only on standard purchases of cables and wires.
View full details
Product Information Resources Reviews
Product Information

*Data provided on this page is subject to change based on different manufacturers' variances
** Images are for display purposes only refer to Product Technical Details for accurate information on the product.
In the case the material only comes in a predetermined color or doesn’t come with any color

Description:

Experience enhanced performance with our advanced inductive sensors, designed for maximum durability and effortless installation These sensors feature extended switching distances, making them versatile enough for various applications without the need for additional sensor types Their innovative design allows multiple sensors to operate flawlessly in confined spaces, while the new generation technology equipped with ASIC and wenglor weproTec helps detect system errors proactively, ensuring reliable performance every time.

Features and Benefits:

    •Increased switching distance.

    •Minimal mounting clearance thanks to wenglor weproTec.

    •Innovative ASIC circuit technology.

    •Integrated error display.

Specifications:

 Switching Distance 4 mm
 Correction Factors Stainless Steel V2A/CuZn/Al 1,02/0,54/0,52
 Mounting Flush
 Mounting A/B/C/D in mm 0/8/12/0
 Mounting B1 in mm 0...2
 Switching Hysteresis < 10 %
 Supply Voltage 10 ... 30 V DC
 Current Consumption (Ub = 24 V) < 7 mA
 Switching Frequency 1,150 Hz
 Temperature Drift < 10 %
 Temperature Range -40 ... 80 °C
 Voltage Drop < 1 V
 Switching Output / Switching Current 150 mA
 Residual Current Switching Output < 100 µA
 Short Circuit Protection yes
 Reverse Polarity Protection yes
 Overload Protection yes
 Protection Class III
 Housing Material Brass, nickel-plated
 Sensing face Plastic, PBT
 Degree of Protection IP67
 Connection M12 × 1; 3-pin
 MTTFd (EN ISO 13849-1) 3,706.54 a
 Function Error Indicator yes
 Output PNP NC yes
