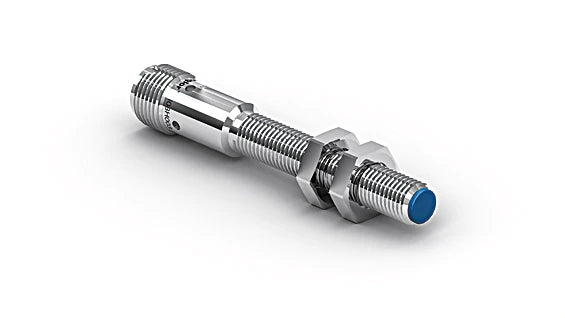

I08H025 - Versatile Inductive Sensor with IO-Link, Multiple Configurations Available

I08H025 - Versatile Inductive Sensor with IO-Link, Multiple Configurations Available

SKU: I08H025 Download PDF

Variant:
  • I08H025 - Versatile Inductive Sensor with IO-Link, Multiple Configurations Available
Now $85.60
BEFORE   $0.00 Now $85.60
Sold out
Web pricing policyShipping calculated at checkout.
IN STOCK
Shipping Available
Free shipping on orders above $1000.* Only on standard purchases of cables and wires.
View full details
Product Information Resources Reviews
Product Information

*Data provided on this page is subject to change based on different manufacturers' variances
** Images are for display purposes only refer to Product Technical Details for accurate information on the product.
In the case the material only comes in a predetermined color or doesn’t come with any color

Description:

Elevate your sensing capabilities with our advanced Inductive Sensors, featuring integrated ASIC technology and an IO-Link interface for seamless network integration Experience the versatility of three selectable switching distances along with two adjustable switching frequencies You can easily customize your settings to choose between PNP/NPN and NO/NC/antivalent configurations This innovative design not only minimizes the variety of variants but also enhances the functional applications of the sensors.

Features and Benefits:

    •Easy sensor configuration using the IO-Link interface.

    •Minimal mounting clearance thanks to wenglor weproTec.

    •Innovative ASIC circuit technology.

    •Integrated error display and error output.

    •Adjustable switching distance.

Specifications:

 Switching Distance 4 mm
 Standard Target 12 × 12 mm
 Correction Factors Stainless Steel V2A/CuZn/Al 1,07/0,50/0,48
 Mounting semi-flush
 Mounting A/B/C/D in mm 8/17/12/3
 Mounting B1 in mm 0...6
 Switching Hysteresis < 10 %
 Supply Voltage 10 ... 30 V DC
 Supply Voltage with IO-Link 18 ... 30 V DC
 Current Consumption (Ub = 24 V) < 12 mA
 Switching Frequency 760 Hz
 Temperature Drift < 10 %
 Temperature Range -40 ... 80 °C
 Voltage Drop < 1 V
 Switching Current 150 mA
 Residual Current Switching Output < 100 µA
 Short Circuit Protection yes
 Overload Protection yes
 Reverse Polarity Protection yes
 Interface IO-Link V1.1
 Protection Class III
 Housing Material Brass, nickel-plated
 Degree of Protection IP67
 Connection M12 × 1; 4-pin
 MTTFd (EN ISO 13849-1) 3,706.54 a
 Function Error Indicator yes
 Programmable switching distance 2,5/3/4 mm
 Programmable switching frequency yes
 Output IO-Link yes
 Programmable error output yes
 PNP NO yes
 Adjustable parameters Output Error Output
 Push-pull NPN PNP
 Circuit NC NC/NO NO
