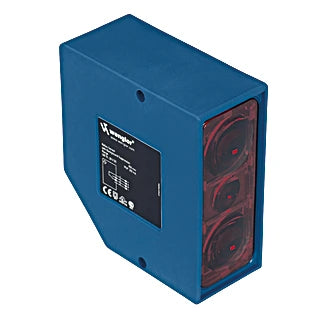

HT80PA3 - Distance Sensor for Reliable Background Object Detection

HT80PA3 - Distance Sensor for Reliable Background Object Detection

SKU: SKU: HT80PA3 Download PDF

Variant:
  • HT80PA3 - Distance Sensor for Reliable Background Object Detection
Regular price Now $3.10
Regular price BEFORE   $0.00 Sale price Now $3.10
Sold out
IN STOCK
Shipping Available
Free shipping on orders above $1000.* Only on standard purchases of cables and wires.
View full details
Product Information

*Data provided on this page is subject to change based on different manufacturers' variances
** Images are for display purposes only refer to Product Technical Details for accurate information on the product.
In the case the material only comes in a predetermined color or doesn’t come with any color

Description:

These advanced sensors utilize angle measurement to gauge distance, making them highly effective at detecting objects against various backgrounds Notably, their performance remains unaffected by the object's color, shape, or surface texture, ensuring reliable operation in diverse conditions.

Features and Benefits:

    •Triple beam correction principle.

    •Red light.

    •Plug can be rotated.

    •Adjustable time delay.

Specifications:

 Range 800 mm
 Setting Range 250 ... 800 mm
 Switching Hysteresis < 5 %
 Light Source Red Light
 Service Life (T = +25 °C) 100,000 h
 Max. Ambient Light 10,000 Lux
 Supply Voltage 10 ... 30 V DC
 Current Consumption (Ub = 24 V) 40 mA
 Switching Frequency 300 Hz
 Response Time 1,700 µs
 Off-Delay 0 ... 1 s
 Temperature Drift < 5 %
 Temperature Range -25 ... 60 °C
 Voltage Drop (PNP Switching Output) < 2.5 V
 Switching Current (PNP Switching Output) 200 mA
 Short Circuit Protection yes
 Reverse Polarity Protection yes
 Overload Protection yes
 Protection Class III
 Setting Method Potentiometer
 Housing Material Plastic, PBT
 Degree of Protection IP67
 Connection M12 × 1; 4-pin
