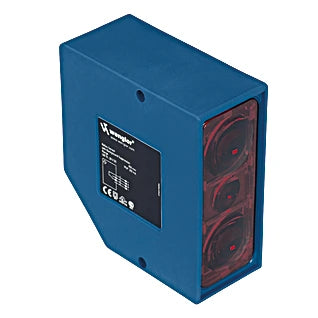

HT77MGV80 - Adjustable Reflex Sensor with Analog & Digital Outputs

HT77MGV80 - Adjustable Reflex Sensor with Analog & Digital Outputs

SKU: HT77MGV80 Download PDF

Variant:
  • HT77MGV80 - Adjustable Reflex Sensor with Analog & Digital Outputs
Now $654.00
BEFORE   $0.00 Now $654.00
Sold out
Web pricing policyShipping calculated at checkout.
IN STOCK
Shipping Available
Free shipping on orders above $1000.* Only on standard purchases of cables and wires.
View full details
Product Information Resources Reviews
Product Information

*Data provided on this page is subject to change based on different manufacturers' variances
** Images are for display purposes only refer to Product Technical Details for accurate information on the product.
In the case the material only comes in a predetermined color or doesn’t come with any color

Description:

Introducing advanced sensors that feature both analog and digital outputs, allowing for versatile applications You can easily adjust the upper and lower switching points of the digital output using two convenient potentiometers The digital output is triggered when an object is detected within the defined range Key highlights include digital, analog, and error outputs, a triple beam correction principle, go/no-go testing capability, and utilization of infrared light technology for precise measurement.

Features and Benefits:

    •Digital, analog and error output.

    •Triple beam correction principle.

    •Go/no-go testing possible.

    •Infrared light.

Specifications:

 Working Range 300 ... 1,300 mm
 Measuring Distance 800 mm
 Measuring Range 1,000 mm
 Resolution see Table 1
 Linearity 5 %
 Switching Hysteresis 50 mm
 Light Source Infrared Light
 Wavelength 880 nm
 Service Life (T = +25 °C) 100,000 h
 Risk Group (EN 62471) 1
 Max. Ambient Light 10,000 Lux
 Supply Voltage 18 ... 30 V DC
 Current Consumption (Ub = 24 V) < 50 mA
 Cut-Off Frequency 50 Hz
 Response Time 10 ms
 Temperature Drift 500 µm/K
 Temperature Range -10 ... 60 °C
 Voltage Drop PNP Switching Output < 2.5 V
 Switching Current PNP Switching Output 200 mA
 Voltage Drop PNP Error Output < 2.5 V
 Switching Current PNP Error Output 200 mA
 Analog Output yes
 Output Current Analog Output 500 µA
 Short Circuit Protection yes
 Reverse Polarity Protection yes
 Overload Protection yes
 Protection Class III
 Housing Material Plastic, PBT
 Degree of Protection IP67
 Connection M12 × 1; 8-pin
 Error Output yes
 PNP NO yes
