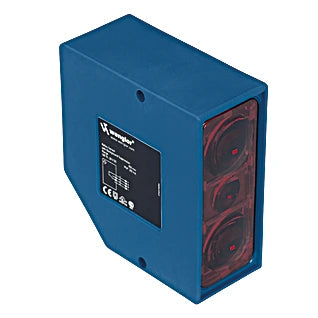

HT60MGV80 - Adjustable Reflex Sensor with Analog Output & LED Indicators

SKU: SKU: HT60MGV80 Download PDF

Variant:

HT60MGV80 - Adjustable Reflex Sensor with Analog Output & LED Indicators

Now $572.00

~~BEFORE $0.00~~ Now $572.00

Sold out

Web pricing policy Shipping calculated at checkout.

IN STOCK

Shipping Available

Free shipping on orders above $1000.* Only on standard purchases of cables and wires.

View full details

Product Information Resources Reviews

Product Information

*Data provided on this page is subject to change based on different manufacturers' variances
** Images are for display purposes only refer to Product Technical Details for accurate information on the product.
In the case the material only comes in a predetermined color or doesn’t come with any color

Description:

Discover advanced performance with these sensors featuring both analog and digital output options You can easily customize the upper and lower switching points of the digital output using two potentiometers This digital output activates when an object enters the specified detection range Perfect for go/no-go testing, these sensors come with red light indicators and offer digital, analog, and error outputs.

Utilizing a triple beam correction principle, they provide reliable measurements for a variety of applications.

Features and Benefits:

•Go/no-go testing possible.

•Red light.

•Digital, analog and error output.

•Triple beam correction principle.

Specifications:

Working Range	300 ... 600 mm
Measuring Distance	450 mm
Measuring Range	300 mm
Resolution	see Table 1
Linearity	1 %
Switching Hysteresis	20 mm
Light Source	Red Light
Wavelength	660 nm
Service Life (T = +25 °C)	100,000 h
Max. Ambient Light	10,000 Lux
Electrical Data	{'Supply Voltage': '18 ... 30 V DC', 'Current Consumption (Ub = 24 V)': '< 50 mA', 'Cut-Off Frequency': '50 Hz', 'Response Time': '10 ms', 'Temperature Drift': '100 µm/K', 'Temperature Range': '-10 ... 60 °C', 'Switching Output Voltage Drop': '< 2.5 V', 'PNP Switching Output / Switching Current': '200 mA', 'Error Output Voltage Drop': '< 2.5 V', 'PNP Error Output / Switching Current': '200 mA', 'Analog Output': '0...10 V', 'Output Current Analog Output': '500 µA', 'Short Circuit Protection': 'yes', 'Reverse Polarity Protection': 'yes', 'Overload Protection': 'yes', 'Protection Class': 'III'}
Mechanical Data	{'Housing Material': 'Plastic, PBT', 'Degree of Protection': 'IP67', 'Connection': 'M12 × 1; 8-pin'}
Output	{'Error Output': 'yes', 'PNP NO': 'yes', 'Analog Output': 'yes'}
