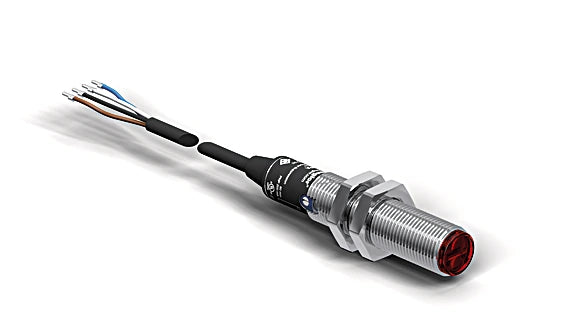

HO08PA - Advanced Reflex Sensor for Accurate Object Detection

HO08PA - Advanced Reflex Sensor for Accurate Object Detection

SKU: SKU: HO08PA Download PDF

Variant:
  • HO08PA - Advanced Reflex Sensor for Accurate Object Detection
Regular price Now $159.00
Regular price BEFORE   $0.00 Sale price Now $159.00
Sold out
IN STOCK
Shipping Available
Free shipping on orders above $1000.* Only on standard purchases of cables and wires.
View full details
Product Information

*Data provided on this page is subject to change based on different manufacturers' variances
** Images are for display purposes only refer to Product Technical Details for accurate information on the product.
In the case the material only comes in a predetermined color or doesn’t come with any color

Description:

Experience precise distance measurement with these advanced sensors that utilize angle detection to identify objects against any backdrop Their performance remains unaffected by an object's color, shape, or surface texture, ensuring reliable operation Plus, these sensors are uniquely designed to function without interference, even when their light spots overlap or are directed at each other, providing seamless functionality for your needs.

Features and Benefits:

    •High switching frequency.

    •Adjustable switching distance.

    •Large detection range.

    •Excellent ambient light suppression.

Specifications:

 Range 80 mm
 Setting Range 25 ... 80 mm
 Switching Hysteresis see Table 1
 Light Source Red Light
 Service Life (T = +25 °C) 100,000 h
 Max. Ambient Light 10,000 Lux
 Light Spot Diameter see Table 1
 Supply Voltage 10 ... 30 V DC
 Current Consumption (Ub = 24 V) < 40 mA
 Switching Frequency 1 kHz
 Response Time 500 µs
 Temperature Drift < 5 %
 Temperature Range -25 ... 60 °C
 Switching Output Voltage Drop < 2.5 V
 Switching Output / Switching Current 200 mA
 Short Circuit Protection yes
 Reverse Polarity Protection yes
 Overload Protection yes
 Protection Class III
 Setting Method Potentiometer
 Housing Material Brass, nickel-plated
 Full Encapsulation yes
 Degree of Protection IP67
 Connection Cable; 4-wire
 Cable Length 2 m
 Cable Jacket Material PVC
 MTTFd (EN ISO 13849-1) 2,489.75 a
 Output PNP NC, PNP NO yes
 Adjustable parameters Circuit NC, NC+NO, NO
