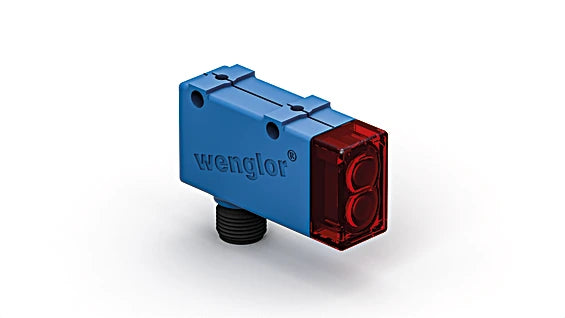

HM24PA2 - Advanced Reflex Sensor for Accurate Distance Measurement

HM24PA2 - Advanced Reflex Sensor for Accurate Distance Measurement

SKU: SKU: HM24PA2 Download PDF

Variant:
  • HM24PA2 - Advanced Reflex Sensor for Accurate Distance Measurement
Regular price Now $203.00
Regular price BEFORE   $0.00 Sale price Now $203.00
Sold out
IN STOCK
Shipping Available
Free shipping on orders above $1000.* Only on standard purchases of cables and wires.
View full details
Product Information

*Data provided on this page is subject to change based on different manufacturers' variances
** Images are for display purposes only refer to Product Technical Details for accurate information on the product.
In the case the material only comes in a predetermined color or doesn’t come with any color

Description:

Experience precision with these distance-detecting sensors, which utilize angle measurements for enhanced accuracy Their exceptional capability to identify objects remains unaffected by various backgrounds, ensuring reliable performance regardless of the colors, shapes, or surface textures of the items in front of them Ideal for a wide range of applications, these sensors provide consistent and dependable object recognition.

Features and Benefits:

    •Electronic background suppression.

    •Red light.

    •Good recognition of objects in front of any background.

Specifications:

 Range 150 mm
 Setting Range 40 ... 150 mm
 Switching Hysteresis < 5 %
 Light Source Red Light
 Service Life (T = +25 °C) 100,000 h
 Max. Ambient Light 10,000 Lux
 Supply Voltage 10 ... 30 V DC
 Current Consumption (Ub = 24 V) < 30 mA
 Switching Frequency 900 Hz
 Response Time 555 µs
 Temperature Drift < 5 %
 Temperature Range -25 ... 60 °C
 Voltage Drop < 2.5 V
 Switching Output / Switching Current 200 mA
 Short Circuit Protection yes
 Reverse Polarity Protection yes
 Overload Protection yes
 Protection Class III
 Setting Method Potentiometer
 Housing Material Plastic
 Full Encapsulation yes
 Degree of Protection IP67
 Connection M12 × 1; 4-pin
 Output PNP NC, PNP NO
 Adjustable parameters Circuit NC, NC+NO, NO
