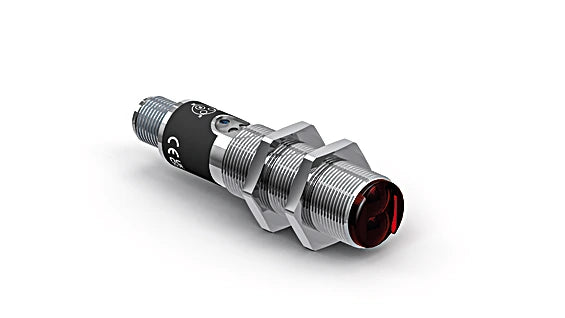

HD11PA3 - Advanced Reflex Sensor for Background Object Detection

HD11PA3 - Advanced Reflex Sensor for Background Object Detection

SKU: SKU: HD11PA3 Download PDF

Variant:
  • HD11PA3 - Advanced Reflex Sensor for Background Object Detection
Regular price Now $178.00
Regular price BEFORE   $0.00 Sale price Now $178.00
Sold out
IN STOCK
Shipping Available
Free shipping on orders above $1000.* Only on standard purchases of cables and wires.
View full details
Product Information

*Data provided on this page is subject to change based on different manufacturers' variances
** Images are for display purposes only refer to Product Technical Details for accurate information on the product.
In the case the material only comes in a predetermined color or doesn’t come with any color

Description:

Experience reliable distance measurement with these advanced sensors that utilize angle detection for precise object recognition Their ability to identify items against any backdrop is impressive, as they remain unaffected by variations in color, shape, or surface texture Perfect for a wide range of applications, these sensors ensure consistent performance in diverse environments.

Features and Benefits:

    •Stainless steel housing.

    •Adjustable switching distance.

    •Electronic background suppression.

    •Red light.

Specifications:

 Optical Range 120 mm
 Setting Range 35 ... 120 mm
 Switching Hysteresis < 5 %
 Light Source Red Light
 Service Life (T = +25 °C) 100,000 h
 Max. Ambient Light 10,000 Lux
 Electrical Supply Voltage 10 ... 30 V DC
 Current Consumption (Ub = 24 V) < 30 mA
 Switching Frequency 600 Hz
 Response Time 833 µs
 Temperature Drift < 5 %
 Temperature Range -25 ... 60 °C
 Switching Output Voltage Drop < 2.5 V
 Switching Output / Switching Current 200 mA
 Short Circuit Protection yes
 Reverse Polarity Protection yes
 Overload Protection yes
 Protection Class III
 Setting Method Potentiometer
 Housing Material Stainless steel, V2A (1.4305 / 303)
 Full Encapsulation yes
 Degree of Protection IP67
 Connection M12 × 1; 4-pin
 Output PNP NC, PNP NO yes
 Adjustable parameters Circuit NC, NC+NO, NO
