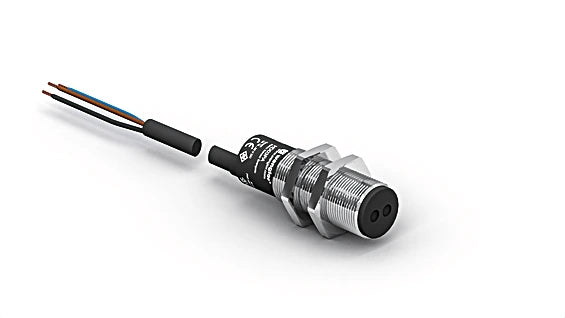

HD03PA - High-Performance Reflex Sensor with 50mm Focus and 100,000-Hour Lifespan

HD03PA - High-Performance Reflex Sensor with 50mm Focus and 100,000-Hour Lifespan

SKU: HD03PA Download PDF

Variant:
  • HD03PA - High-Performance Reflex Sensor with 50mm Focus and 100,000-Hour Lifespan
Now $183.00
BEFORE   $0.00 Now $183.00
Sold out
Web pricing policyShipping calculated at checkout.
IN STOCK
Shipping Available
Free shipping on orders above $1000.* Only on standard purchases of cables and wires.
View full details
Product Information Resources Reviews
Product Information

*Data provided on this page is subject to change based on different manufacturers' variances
** Images are for display purposes only refer to Product Technical Details for accurate information on the product.
In the case the material only comes in a predetermined color or doesn’t come with any color

Description:

Experience advanced sensing technology with the Reflex Sensor Energetic, engineered to minimize background interference at distances over 50 mm Its cost-effective design incorporates quasi-background-suppression features, ensuring reliable performance even in bright environments with a maximum light tolerance of 10,000 Lux Built for longevity, this sensor boasts an impressive operational lifespan of up to 100,000 hours, functioning efficiently at +25 °C.

Features and Benefits:

    •Low-cost.

    •Quasi-background-suppression.

    •Fine focused optics.

Specifications:

 Optical Range 30 mm
 Switching Hysteresis < 15 %
 Light Source Infrared Light
 Max. Ambient Light 10,000 Lux
 Opening Angle 12 °
 Supply Voltage 10 ... 30 V DC
 Current Consumption (Ub = 24 V) < 40 mA
 Switching Frequency 1,500 Hz
 Response Time 330 µs
 Temperature Drift < 10 %
 Temperature Range -25 ... 60 °C
 Voltage Drop < 2.5 V
 Switching Output PNP
 Switching Current 200 mA
 Residual Current < 50 µA
 Short Circuit Protection yes
 Reverse Polarity Protection yes
 Overload Protection yes
 Protection Class III
 Housing Material Brass, nickel-plated
 Full Encapsulation yes
 Degree of Protection IP67
 Connection Cable; 4-wire
 Cable Length 2 m
 Cable Jacket Material Plastic, PVC
 MTTFd (EN ISO 13849-1) 2,337.8 a
 Output PNP NC, PNP NO
 Adjustable parameters Circuit NC, NC+NO, NO
