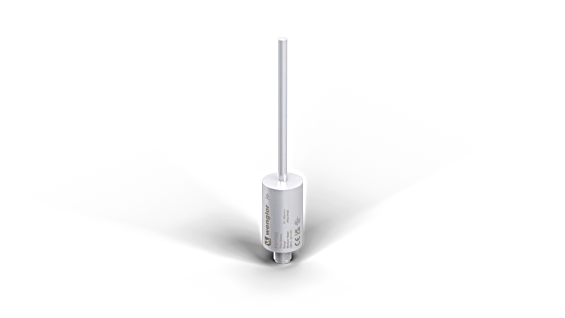

FXTT018 - FDA Compliant Temperature Sensor for Liquids & Gases

FXTT018 - FDA Compliant Temperature Sensor for Liquids & Gases

SKU: FXTT018 Download PDF

Variant:
  • FXTT018 - FDA Compliant Temperature Sensor for Liquids & Gases
Now $396.00
BEFORE   $0.00 Now $396.00
Sold out
Web pricing policyShipping calculated at checkout.
IN STOCK
Shipping Available
Free shipping on orders above $1000.* Only on standard purchases of cables and wires.
View full details
Product Information Resources Reviews
Product Information

*Data provided on this page is subject to change based on different manufacturers' variances
** Images are for display purposes only refer to Product Technical Details for accurate information on the product.
In the case the material only comes in a predetermined color or doesn’t come with any color

Description:

Experience accurate temperature monitoring with the weFlux² Temperature Sensors, designed for liquids and gases within closed piping systems Choose between two switching outputs, a combination of one switching and one analog output, or a single 2-wire analog output based on your configuration needs These sensors offer flexibility in adapting to various applications through customizable settings via IO-Link.

Key features include FDA compliance, readiness for Industry 40 with IO-Link 11, and a fast response time of less than 2 seconds With a measuring range from -50 to +150° C, these sensors provide reliable performance.

Features and Benefits:

    •FDA compliant.

    •Ready for Industry 4.0 with IO-Link 1.1.

    •Response time T90 of less than 2 seconds.

    •Temperature measuring range: -50 ... +150° C.

Specifications:

 Temperature Measurement Range -50 ... 150 °C
 Setting Range -50 ... 150 °C
 Medium Liquids, gases
 Measuring error ± 0.5 °C
 Resolution > 11 bit
 Response Time < 2 s
 Temperature of medium -50 ... 150 °C
 Ambient temperature -25 ... 80 °C
 Storage temperature -25 ... 80 °C
 Pressure Resistance 100 bar
 EMC DIN EN 61326-1
 Shock Resistance IEC 60751
 Vibration resistance IEC 60751
 2-wire supply power 12 ... 32 V DC
 3-wire supply power 12 ... 32 V DC
 Current Consumption (Ub = 24 V) < 15 mA
 Number of Switching Outputs 2
 Switching Output / Switching Current ± 100 mA
 Switching Output Voltage Drop < 1.5 V DC
 Analog Output 4...20 mA
 Signal source Temperature
 Short Circuit Protection yes
 Reverse Polarity Protection yes
 Protection Class III
 Interface IO-Link V1.1
 Setting Method IO-Link
 Housing Material Stainless steel, V4A (1.4404/316L)
 Material in contact with media Stainless steel, V4A (1.4404/316L)
 Degree of Protection IP68 * IP69K *
 Connection M12 × 1; 4-pin
 Process Connection Cutting/locking ring
 Process Connection Length (PCL) 84 mm
 Probe Length (PL) 75 mm
 MTTFd (EN ISO 13849-1) 1,198.4 a
 Output Analog Output yes
 IO-Link yes
 PNP NO yes
 Adjustable parameters Analog output 0...10 V, 4...20 mA
 Output Push-pull NPN PNP
 Circuit NC NC/NO NO
 Selectable measurement range
 All other parameters can be found in the product documentation.
