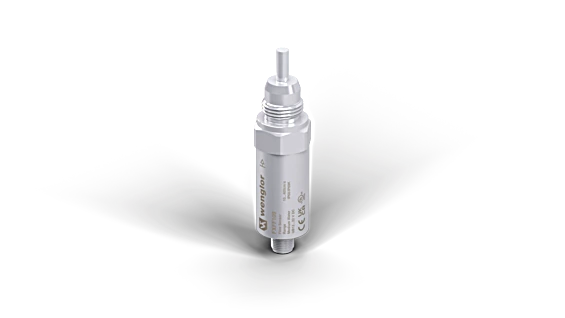

FXTT009 - Precision Temperature Sensor for Liquids & Gases with IO-Link

FXTT009 - Precision Temperature Sensor for Liquids & Gases with IO-Link

SKU: FXTT009 Download PDF

Variant:
  • FXTT009 - Precision Temperature Sensor for Liquids & Gases with IO-Link
Now $449.00
BEFORE   $0.00 Now $449.00
Sold out
Web pricing policyShipping calculated at checkout.
IN STOCK
Shipping Available
Free shipping on orders above $1000.* Only on standard purchases of cables and wires.
View full details
Product Information Resources Reviews
Product Information

*Data provided on this page is subject to change based on different manufacturers' variances
** Images are for display purposes only refer to Product Technical Details for accurate information on the product.
In the case the material only comes in a predetermined color or doesn’t come with any color

Description:

Introducing the weFlux² Temperature Sensors, expertly designed for accurate temperature measurement in liquids and gases within closed piping systems Choose from multiple output configurations: two switching outputs, a combination of one switching and one analog output, or a single 2-wire analog output, tailored to fit your specific needs With the versatility of IO-Link, you can easily customize the sensor outputs for optimal performance in any application.

Features and Benefits:

    •FDA compliant.

    •Ready for Industry 4.0 with IO-Link 1.1.

    •Response time T90: < 2 seconds.

    •Temperature measuring range: -50 ... +150° C.

Specifications:

 Temperature Measurement Range -50 ... 150 °C
 Setting Range -50 ... 150 °C
 Medium Liquids, gases
 Measuring error ± 0.5 °C
 Resolution > 11 bit
 Response Time < 2 s
 Ambient temperature -25 ... 80 °C
 Pressure Resistance 100 bar
 Electrical Data {'2-wire supply power': '12 ... 32 V DC', '3-wire supply power': '12 ... 32 V DC', 'Current Consumption': '< 15 mA', 'Number of Switching Outputs': '2', 'Switching Output / Switching Current': '± 100 mA', 'Analog Output': '4...20 mA'}
 Mechanical Data {'Setting Method': 'IO-Link', 'Housing Material': 'Stainless steel, V4A (1.4404/316L)', 'Degree of Protection': 'IP69K, IP68', 'Connection': 'M12 × 1; 4-pin', 'Process Connection': 'G 1/2" CIP-capable', 'Probe Length': '16.4 mm'}
 Safety-relevant Data {'MTTFd': '1,198.4 a', 'Output Analog Output': 'yes', 'IO-Link': 'yes'}
