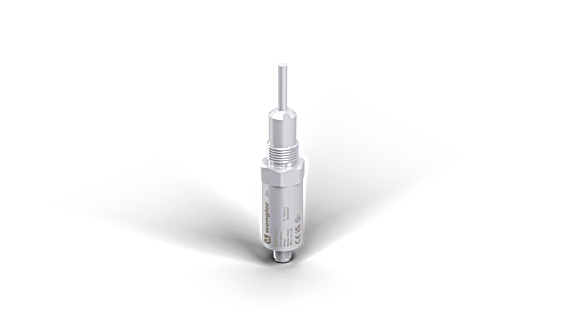

FXFF147 - Dual Output Flow Sensor for Liquid Temperature & Velocity Measurement

FXFF147 - Dual Output Flow Sensor for Liquid Temperature & Velocity Measurement

SKU: FXFF147 Download PDF

Variant:
  • FXFF147 - Dual Output Flow Sensor for Liquid Temperature & Velocity Measurement
Now $498.00
BEFORE   $0.00 Now $498.00
Sold out
Web pricing policyShipping calculated at checkout.
IN STOCK
Shipping Available
Free shipping on orders above $1000.* Only on standard purchases of cables and wires.
View full details
Product Information Resources Reviews
Product Information

*Data provided on this page is subject to change based on different manufacturers' variances
** Images are for display purposes only refer to Product Technical Details for accurate information on the product.
In the case the material only comes in a predetermined color or doesn’t come with any color

Description:

Introducing the weFlux² Flow Sensors, designed to accurately measure both flow velocity and the temperature of water-based liquids, regardless of their direction or position These sensors feature dual analog outputs, allowing for streamlined data collection By halving the number of measurement points and offering a wide range of sensor variants, they provide unparalleled flexibility in installations for closed piping systems.

Housed in a compact design, the integrated analysis module enhances efficiency and ease of use.

Features and Benefits:

    •2 analog outputs: 4 ... 20 mA.

    •FDA compliant.

    •A single sensor for flow and temperature.

    •Measurement independent of flow direction and installation position.

Specifications:

 Measuring Range 10 ... 400 cm/s
 Temperature of the medium, flow measurement 0 ... 125 °C
 Temperature of the medium, temperature measurement -25 ... 150 °C
 Setting Range 10 ... 400 cm/s
 Medium Water
 Measuring error (total) ≤ 2 %
 MTTFd (EN ISO 13849-1) 1,210.41 a
 Response time in case of temperature jump 10 s
 Ambient temperature -25 ... 80 °C
 Storage temperature -25 ... 80 °C
 Pressure Resistance 100 bar
 Supply Voltage 12 ... 32 V DC
 Current Consumption (Ub = 24 V) < 40 mA
 Number of analog outputs 2
 Signal source Flow
 Response Time 1 ... 5 s
 Short Circuit Protection yes
 Reverse Polarity Protection yes
 Protection Class III
 Housing Material Stainless steel, V4A (1.4404/316L)
 Material in contact with media Stainless steel, V4A (1.4404/316L)
 Degree of Protection IP69K * IP68 *
 Connection M12 × 1; 4-pin
 Process Connection G 1/2" hygienic design
 Probe Length (PL) 32 mm
