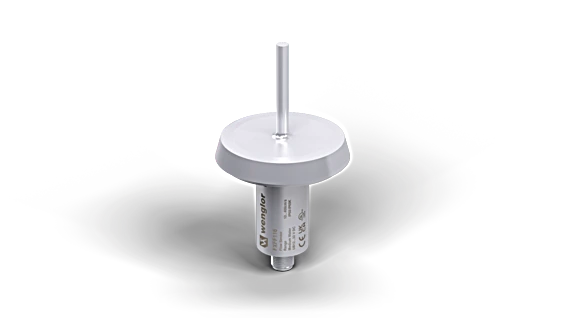

FXFF116 - Compact Flow Sensor with Dual Analog Outputs for Liquid Measurement

FXFF116 - Compact Flow Sensor with Dual Analog Outputs for Liquid Measurement

SKU: FXFF116 Download PDF

Variant:
  • FXFF116 - Compact Flow Sensor with Dual Analog Outputs for Liquid Measurement
Now $498.00
BEFORE   $0.00 Now $498.00
Sold out
Web pricing policyShipping calculated at checkout.
IN STOCK
Shipping Available
Free shipping on orders above $1000.* Only on standard purchases of cables and wires.
View full details
Product Information Resources Reviews
Product Information

*Data provided on this page is subject to change based on different manufacturers' variances
** Images are for display purposes only refer to Product Technical Details for accurate information on the product.
In the case the material only comes in a predetermined color or doesn’t come with any color

Description:

Introducing the weFlux² Flow Sensors, expertly designed to simultaneously measure both flow velocity and temperature of aqueous liquids, regardless of the flow's direction or positioning This innovative device minimizes the number of required measurement points and offers a diverse selection of sensor variants, ensuring maximum flexibility for installation in closed piping systems Housed in a compact and integrated design, the analysis module enhances usability and efficiency.

Features and Benefits:

    •2 analog outputs: 4 ... 20 mA.

    •FDA compliant.

    •A single sensor for flow and temperature.

    •Measurement independent of flow direction and installation position.

Specifications:

 Measuring Range 10 ... 400 cm/s
 Temperature of the medium, flow measurement 0 ... 125 °C**
 Temperature of the medium, temperature measurement -25 ... 150 °C
 Setting Range 10 ... 400 cm/s
 Medium Water
 Measuring error (total) ≤ 2 %
 MTTFd (EN ISO 13849-1) 1,210.41 a
 Response time in case of temperature jump 10 s
 Ambient temperature -25 ... 80 °C
 Storage temperature -25 ... 80 °C
 Pressure Resistance 25 bar
 EMC DIN EN 61326-1
 Shock resistance per DIN IEC 68-2-27 30 g / 11 ms
 Vibration resistance per DIN IEC 60068-2-6 5 g (10...2000 Hz)
 Supply Voltage 12 ... 32 V DC
 Current Consumption (Ub = 24 V) < 40 mA
 Number of analog outputs 2
 Analog Output 4...20 mA
 Signal source Flow
 Response Time 1 ... 5 s
 Short Circuit Protection yes
 Reverse Polarity Protection yes
 Protection Class III
 Housing Material Stainless steel, V4A (1.4404/316L)
 Material in contact with media Stainless steel, V4A (1.4404/316L)
 Degree of Protection IP69K *
 Connection M12 × 1; 4-pin
 Process Connection Dairy pipe DN50
 Process Connection Length (PCL) 73 mm
 Probe Length (PL) 50 mm
 Output Analog output flow yes
 Output Analog output temperature yes
 Adjustable parameters Signal source
 Temperature All other parameters can be found in the product documentation.
