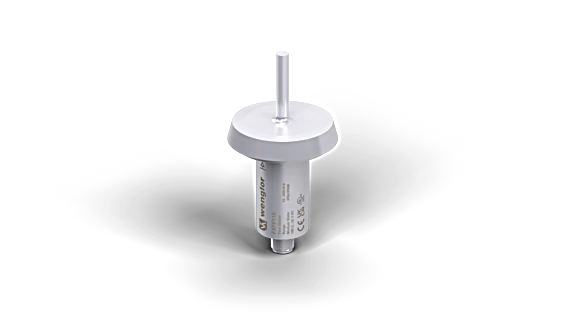

FXFF115 - Dual Output Flow Sensor for Aqueous Liquids, Compact Design

FXFF115 - Dual Output Flow Sensor for Aqueous Liquids, Compact Design

SKU: FXFF115 Download PDF

Variant:
  • FXFF115 - Dual Output Flow Sensor for Aqueous Liquids, Compact Design
Now $468.00
BEFORE   $0.00 Now $468.00
Sold out
Web pricing policyShipping calculated at checkout.
IN STOCK
Shipping Available
Free shipping on orders above $1000.* Only on standard purchases of cables and wires.
View full details
Product Information Resources Reviews
Product Information

*Data provided on this page is subject to change based on different manufacturers' variances
** Images are for display purposes only refer to Product Technical Details for accurate information on the product.
In the case the material only comes in a predetermined color or doesn’t come with any color

Description:

Experience precise measurements with the weFlux² Flow Sensor, which offers dual analog outputs to simultaneously monitor both flow velocity and liquid temperature for water-based fluids Its unique design provides ultimate versatility in installation, functioning flawlessly regardless of flow direction or positioning—ideal for closed piping systems Encased in a compact housing, the integrated sensor analysis module enhances performance while saving valuable installation space.

Features and Benefits:

    •2 analog outputs: 4 ... 20 mA.

    •FDA compliant.

    •A single sensor for flow and temperature.

    •Measurement independent of flow direction and installation position.

Specifications:

 Measuring Range: 10 ... 400 cm/s
 Temperature of the medium, flow measurement: 0 ... 125 °C
 Temperature of the medium, temperature measurement: -25 ... 150 °C
 Setting Range: 10 ... 400 cm/s
 Medium: Water
 Measuring error (total): 2 %
 MTTFd (EN ISO 13849-1): 1,210.41 a
 Response time in case of temperature jump: 10 s
 Ambient temperature: -25 ... 80 °C
 Storage temperature: -25 ... 80 °C
 Pressure Resistance: 40 bar
 EMC: DIN EN 61326-1
 Shock resistance per DIN IEC 68-2-27: 30 g / 11 ms
 Vibration resistance per DIN IEC 60068-2-6: 5 g (10...2000 Hz)
 Supply Voltage: 12 ... 32 V DC
 Current Consumption (Ub = 24 V): < 40 mA
 Number of analog outputs: 2
 Analog Output: 4...20 mA
 Signal source: Flow
 Response Time: 1 ... 5 s
 Short Circuit Protection: yes
 Reverse Polarity Protection: yes
 Protection Class: III
 Housing Material: Stainless steel, V4A (1.4404/316L)
 Material in contact with media: Stainless steel, V4A (1.4404/316L)
 Degree of Protection: IP69K *
 IP68 *:
 Connection: M12 × 1; 4-pin
 Process Connection: Dairy pipe DN40
 Process Connection Length (PCL): 58 mm
 Probe Length (PL): 36 mm
