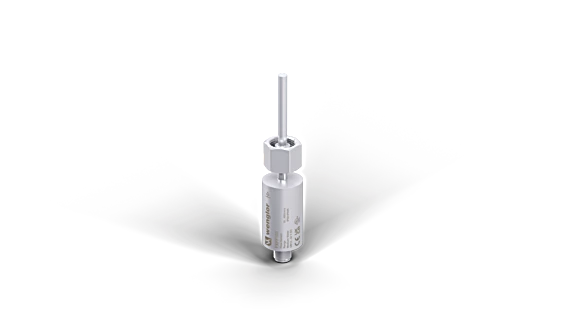

FXFF103 - Dual Analog Flow Sensor for Liquid Flow & Temperature Measurement

FXFF103 - Dual Analog Flow Sensor for Liquid Flow & Temperature Measurement

SKU: FXFF103 Download PDF

Variant:
  • FXFF103 - Dual Analog Flow Sensor for Liquid Flow & Temperature Measurement
Now $409.00
BEFORE   $0.00 Now $409.00
Sold out
Web pricing policyShipping calculated at checkout.
IN STOCK
Shipping Available
Free shipping on orders above $1000.* Only on standard purchases of cables and wires.
View full details
Product Information Resources Reviews
Product Information

*Data provided on this page is subject to change based on different manufacturers' variances
** Images are for display purposes only refer to Product Technical Details for accurate information on the product.
In the case the material only comes in a predetermined color or doesn’t come with any color

Description:

Introducing the weFlux² Flow Sensors, designed to accurately gauge both flow velocity and the temperature of water-based liquids, regardless of how they are positioned or the direction of flow These sensors feature dual analog outputs, effectively reducing the number of measuring locations needed and offering a wide variety of sensor options This ensures maximum flexibility when installing in closed piping systems.

Additionally, the compact housing integrates the analysis module, enhancing convenience and efficiency in your applications.

Features and Benefits:

    •2 analog outputs: 4 ... 20 mA.

    •FDA compliant.

    •A single sensor for flow and temperature.

    •Measurement independent of flow direction and installation position.

Specifications:

 Measuring Range 10 ... 400 cm/s
 Temperature of the medium, flow measurement 0 ... 125 °C
 Temperature of the medium, temperature measurement -25 ... 150 °C
 Setting Range 10 ... 400 cm/s
 Medium Water
 Measuring error (total) ≤ 2 %
 MTTFd (EN ISO 13849-1) 1,210.41 a
 Response time in case of temperature jump 10 s
 Ambient temperature -25 ... 80 °C
 Storage temperature -25 ... 80 °C
 Pressure Resistance 100 bar
 EMC DIN EN 61326-1
 Shock resistance per DIN IEC 68-2-27 30 g / 11 ms
 Vibration resistance per DIN IEC 60068-2-6 5 g (10...2000 Hz)
 Supply Voltage 12 ... 32 V DC
 Current Consumption (Ub = 24 V) < 40 mA
 Number of analog outputs 2
 Analog Output 4...20 mA
 Signal source Flow
 Response Time 1 ... 5 s
 Short Circuit Protection yes
 Reverse Polarity Protection yes
 Protection Class III
 Housing Material Stainless steel, V4A (1.4404/316L)
 Material in contact with media Stainless steel, V4A (1.4404/316L), Rubber, FKM, Rubber, FPM
 Degree of Protection IP69K *, IP68 *
 Connection M12 × 1; 4-pin
 Process Connection Sealing cone M18 × 1.5
 Process Connection Length (PCL) 82 mm
 Probe Length (PL) 50 mm
