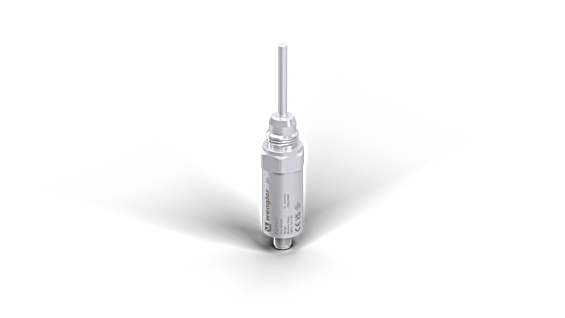

FXFF017 - Versatile Flow Sensor for Liquid Velocity and Temperature Measurement

FXFF017 - Versatile Flow Sensor for Liquid Velocity and Temperature Measurement

SKU: FXFF017 Download PDF

Variant:
  • FXFF017 - Versatile Flow Sensor for Liquid Velocity and Temperature Measurement
Now $498.00
BEFORE   $0.00 Now $498.00
Sold out
Web pricing policyShipping calculated at checkout.
IN STOCK
Shipping Available
Free shipping on orders above $1000.* Only on standard purchases of cables and wires.
View full details
Product Information Resources Reviews
Product Information

*Data provided on this page is subject to change based on different manufacturers' variances
** Images are for display purposes only refer to Product Technical Details for accurate information on the product.
In the case the material only comes in a predetermined color or doesn’t come with any color

Description:

The weFlux² flow sensors offer advanced capabilities for measuring both flow velocity and temperature of aqueous liquids with exceptional accuracy, regardless of orientation or flow direction This groundbreaking design minimizes the number of measurement points needed and simplifies the variety of sensor options, allowing for greater flexibility during installation in closed piping systems Depending on your specific requirements, the sensor supports either two switching outputs or a combination of one switching output and one analog output.

Users can effortlessly customize the outputs through IO-Link configuration, making it adaptable for various applications Furthermore, these sensors comply with FDA regulations and are engineered to align with Industry 40 standards, featuring IO-Link 11 for enhanced connectivity and integration.

Features and Benefits:

    •Single sensor for measuring both flow and temperature.

    •FDA compliant.

    •Ready for Industry 4.0 with IO-Link 1.1.

    •Measurement independent of flow direction and installation position.

Specifications:

 Measuring Range (Flow Velocity) 10 ... 400 cm/s
 Temperature Range (Flow Measurement) 0 ... 125 °C
 Temperature Range (Temperature Measurement) -25 ... 150 °C
 Setting Range 10 ... 400 cm/s
 Medium Water
 Measuring Error (Total) ≤ 2 %
 MTTFd (EN ISO 13849-1) 1,210.41 a
 Response Time (Temperature Jump) 10 s
 Ambient Temperature -25 ... 80 °C
 Storage Temperature -25 ... 80 °C
 Pressure Resistance 100 bar
 EMC DIN EN 61326-1
 Shock Resistance 30 g / 11 ms
 Vibration Resistance 5 g (10...2000 Hz)
 Supply Voltage 12 ... 32 V DC
 Current Consumption (Ub = 24 V) < 40 mA
 Number of Switching Outputs 2
 Number of Analog Outputs 1
 Analog Output 4...20 mA
 Response Time 1 ... 5 s
 Switching Output / Switching Current ± 100 mA
 Voltage Drop < 2 V
 Load Current Voltage Output ≤ 20 mA
 Short Circuit Protection yes
 Reverse Polarity Protection yes
 Protection Class III
 Interface IO-Link V1.1
 Setting Method IO-Link
 Housing Material Stainless steel, V4A (1.4404/316L)
 Material in Contact with Media Stainless steel, V4A (1.4404/316L)
 Degree of Protection IP69K *
 Connection M12 × 1; 4-pin
 Process Connection G 1/2" CIP-capable
 Process Connection Length (PCL) 93.5 mm
 Probe Length (PL) 50 mm
 Output Analog Output Flow yes
 IO-Link yes
 PNP NO yes
 Adjustable Parameters Output Analog Output
 Push-pull yes
 Analog Output (Optional) 0...10 V, 4...20 mA
