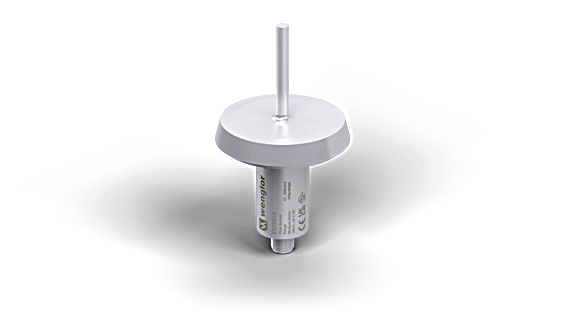

FXFF016 - Versatile Flow Sensor for Liquids, 10-400 cm/s & Temp up to 125 °C

*Data provided on this page is subject to change based on different manufacturers' variances
** Images are for display purposes only refer to Product Technical Details for accurate information on the product.
In the case the material only comes in a predetermined color or doesn’t come with any color

Description:

Introducing our advanced flow sensor equipped with IO-Link technology, expertly designed to accurately measure flow velocity and temperature of water-based liquids in any orientation or direction This innovative product minimizes the need for multiple measuring points and sensor types, providing enhanced flexibility for installation in sealed piping systems Depending on your specific requirements, this sensor can be configured to deliver either two switching outputs or a combination of one switching output alongside one analog output, all customizable via IO-Link.

It meets FDA standards and is prepared for Industry 40 integration, boasting a flow measurement range from 10 to 400 cm/s and a temperature measuring range from 0 to 125 °C Additionally, it can withstand environmental temperatures from -25 to 80 °C, ensuring reliable performance in various conditions.

Features and Benefits:

•Single sensor for flow and temperature measurement.

•FDA compliant.

•Ready for Industry 4.0 with IO-Link 1.1.

•Measurement independent of flow direction and installation position.

Specifications:
