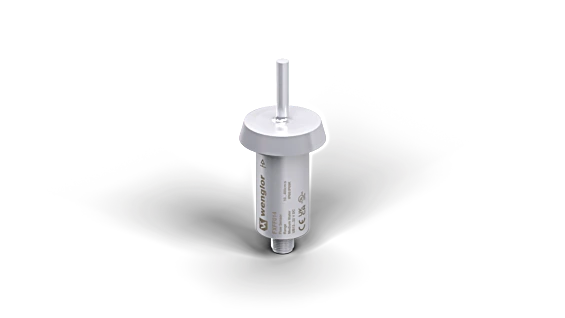

FXFF014 - Flexible Flow Sensor for Liquids, Measures Flow & Temperature

FXFF014 - Flexible Flow Sensor for Liquids, Measures Flow & Temperature

SKU: FXFF014 Download PDF

Variant:
  • FXFF014 - Flexible Flow Sensor for Liquids, Measures Flow & Temperature
Now $468.00
BEFORE   $0.00 Now $468.00
Sold out
Web pricing policyShipping calculated at checkout.
IN STOCK
Shipping Available
Free shipping on orders above $1000.* Only on standard purchases of cables and wires.
View full details
Product Information Resources Reviews
Product Information

*Data provided on this page is subject to change based on different manufacturers' variances
** Images are for display purposes only refer to Product Technical Details for accurate information on the product.
In the case the material only comes in a predetermined color or doesn’t come with any color

Description:

Experience innovative fluid measurement with the weFlux² flow sensors, engineered to simultaneously gauge flow velocity and temperature of aqueous liquids, regardless of their position or flow direction This streamlined design minimizes the need for multiple measuring points and sensor types, delivering exceptional installation flexibility within closed piping systems Tailored to your specific applications, these sensors can be configured to offer either dual switching outputs or a combination of one switching and one analog output through IO-Link, ensuring versatile usage in various settings.

Features and Benefits:

    •A single sensor for flow and temperature.

    •FDA compliant.

    •Ready for Industry 4.0 with IO-Link 1.1.

    •Measurement independent of flow direction and installation position.

Specifications:

 Measuring Range 10 ... 400 cm/s
 Temperature of the medium, flow measurement 0 ... 125 °C**
 Temperature of the medium, temperature measurement -25 ... 150 °C
 Setting Range 10 ... 400 cm/s
 Medium Water
 Measuring error (total) ≤ 2 %
 MTTFd (EN ISO 13849-1) 1,210.41 a
 Response time in case of temperature jump 10 s
 Ambient temperature -25 ... 80 °C
 Storage temperature -25 ... 80 °C
 Pressure Resistance 40 bar
 EMC DIN EN 61326-1
 Shock resistance per DIN IEC 68-2-27 30 g / 11 ms
 Vibration resistance per DIN IEC 60068-2-6 5 g (10...2000 Hz)
 Supply Voltage 12 ... 32 V DC
 Current Consumption (Ub = 24 V) < 40 mA
 Number of Switching Outputs 2
 Number of analog outputs 1
 Analog Output 4...20 mA
 Signal source Flow
 Response Time 1 ... 5 s
 Switching Output / Switching Current ± 100 mA
 Switching Output Voltage Drop < 2 V
 Load Current Voltage Output ≤ 20 mA
 Short Circuit Protection yes
 Reverse Polarity Protection yes
 Protection Class III
 Interface IO-Link V1.1
 Setting Method IO-Link
 Housing Material Stainless steel, V4A (1.4404/316L)
 Material in contact with media Stainless steel, V4A (1.4404/316L)
 Degree of Protection IP69K * IP68 *
 Connection M12 × 1; 4-pin
 Process Connection Dairy pipe DN25
 Process Connection Length (PCL) 54 mm
 Probe Length (PL) 32 mm
 Output Analog output flow yes
 IO-Link yes
 PNP NO yes
 Adjustable parameters Output Analog Output
 Push-pull NPN, PNP
 Other parameters 2 switching points
 Selectable measurement range
