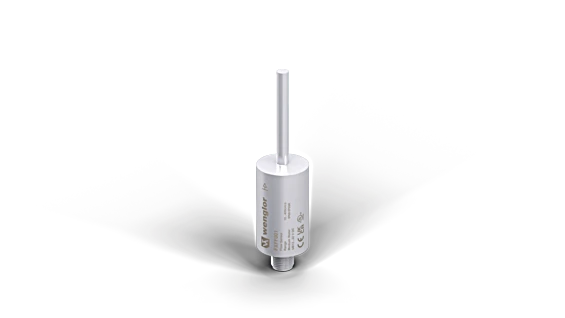

FXFF001 - WeFlux² Flow Sensor for Measuring Velocity & Temperature

SKU: SKU: FXFF001 Download PDF

Variant:

FXFF001 - WeFlux² Flow Sensor for Measuring Velocity & Temperature

Now $409.00

~~BEFORE $0.00~~ Now $409.00

Sold out

Web pricing policy Shipping calculated at checkout.

IN STOCK

Shipping Available

Free shipping on orders above $1000.* Only on standard purchases of cables and wires.

View full details

Product Information Resources Reviews

Product Information

*Data provided on this page is subject to change based on different manufacturers' variances
** Images are for display purposes only refer to Product Technical Details for accurate information on the product.
In the case the material only comes in a predetermined color or doesn’t come with any color

Description:

Introducing the weFlux² flow sensors, expertly engineered to measure both flow velocity and temperature in aqueous liquids with precision These versatile sensors enhance installation efficiency in closed piping systems by minimizing the number of required measurement points and variations Depending on your specific application, you can choose between two switching outputs or a combination of one switching output along with one analog output.

Furthermore, customization is easily achieved through IO-Link, allowing you to optimize the outputs to meet your precise needs.

Features and Benefits:

•A single sensor for flow and temperature.

•FDA compliant.

•Ready for Industry 4.0 with IO-Link 1.1.

•Measurement independent of flow direction and installation position.

Specifications:

Measuring Range	10 ... 400 cm/s
Temperature of the medium, flow measurement	0 ... 125 °C
Temperature of the medium, temperature measurement	-25 ... 150 °C
Setting Range	10 ... 400 cm/s
Medium	Water
Measuring error (total)	≤ 2 %
MTTFd (EN ISO 13849-1)	1,210.41 a
Response time in case of temperature jump	10 s
Ambient temperature	-25 ... 80 °C
Storage temperature	-25 ... 80 °C
Pressure Resistance	100 bar
Electrical Data	{'Supply Voltage': '12 ... 32 V DC', 'Current Consumption (Ub = 24 V)': '< 40 mA', 'Number of Switching Outputs': '2', 'Number of Analog Outputs': '1', 'Analog Output': '4...20 mA', 'Switching Current': '± 100 mA', 'Voltage Drop': '< 2 V', 'Load Current Voltage Output': '≤ 20 mA', 'Short Circuit Protection': 'yes', 'Reverse Polarity Protection': 'yes', 'Protection Class': 'III', 'Interface': 'IO-Link V1.1'}
Mechanical Data	{'Setting Method': 'IO-Link', 'Housing Material': 'Stainless steel, V4A (1.4404/316L)', 'Material in contact with media': 'Stainless steel, V4A (1.4404/316L)', 'Degree of Protection': 'IP69K, IP68', 'Connection': 'M12 × 1; 4-pin', 'Process Connection': 'Cutting/locking ring', 'Process Connection Length (PCL)': '59 mm', 'Probe Length (PL)': '50 mm'}
