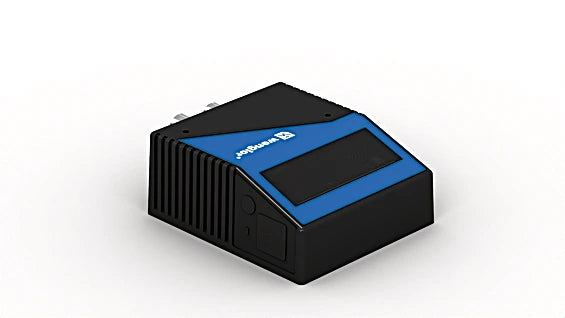

FIS-0870-0108 - Versatile Sweep Raster Scanner with Adjustable Path-Folding Angle

FIS-0870-0108 - Versatile Sweep Raster Scanner with Adjustable Path-Folding Angle

SKU: FIS-0870-0108 Download PDF

Variant:
  • FIS-0870-0108 - Versatile Sweep Raster Scanner with Adjustable Path-Folding Angle
Now $2,947.00
BEFORE   $0.00 Now $2,947.00
Sold out
Web pricing policyShipping calculated at checkout.
IN STOCK
Shipping Available
Free shipping on orders above $1000.* Only on standard purchases of cables and wires.
View full details
Product Information Resources Reviews
Product Information

*Data provided on this page is subject to change based on different manufacturers' variances
** Images are for display purposes only refer to Product Technical Details for accurate information on the product.
In the case the material only comes in a predetermined color or doesn’t come with any color

Description:

Introducing the versatile sweep raster scanner, expertly crafted for efficient scanning of various surface areas The unique oscillating mirror features an adjustable path-folding angle, ensuring optimal alignment for your specific requirements This scanner supports a wide range of code types, including Code39, Interleaved 2 of 5, Code128, Codabar, UPC, PDF417, Code93, AIAG, UCC/EAN-128, Micro PDF, Pharmacode, and GS1 Databar, making it an essential tool for diverse applications.

Features and Benefits:

    •LED scanning rate indicator.

    •Diagnosis functions.

    •Maximum oscillation rate: 80 oscillations/second.

    •Teach-in.

    •Integrated code reconstruction.

Specifications:

 Barcode Density Medium density
 Read Range 25 ... 304 mm
 Light Source Laser (red)
 Wavelength 655 nm
 Service Life (T = +25 °C) 50,000 h
 Laser Class (EN 60825-1) 2
 Max. Ambient Light 4,840 Lux
 Opening Angle 60 °
 Adjustable Scan Width yes
 Barcode Printing Contrast > 25 %
 Temperature Range 0 ... 50 °C
 Atmospheric humidity < 90%, non-condensing
 Supply Voltage 10 ... 28 V DC
 Power Consumption 6,480 mW
 Scan Rate 300 ... 1,400 scans/sec
 Switching Output Optoisolator
 Number of Switching Outputs 3
 Switching Current 100 mA
 Reverse Polarity Protection yes
 Network Possibilities Daisy Chain, Multidrop
 Interface RS-232/422/485
 Transmission rate 115.2 Kbit/s
 Trigger Input Optoisolator
 Signal Input Optoisolator
 Number of Signal Inputs 3
 Acoustic signal yes
 Protection Class III
 FDA Accession Number 8310057-012
 Housing Material Aluminum
 Optic Cover Glass
 Degree of Protection IP65
 UL Enclosure Type 1
 Connection M12 × 1; 12-pin
 Output PNP NO/NC switchable yes
 NPN NO/NC switchable yes
 RS-232 Interface yes
 RS-422 Interface yes
 RS-485 Interface (half duplex) yes
 Raster Sweep Angle 0°...10°, 11°...20°, 21°...34°
 Sweeps/sec 80, 60, 40
