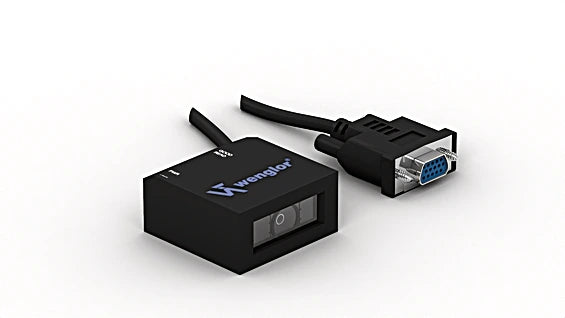

FIS-0003-0105 - Compact High-Density Barcode Scanner with Auto-Calibration

*Data provided on this page is subject to change based on different manufacturers' variances
** Images are for display purposes only refer to Product Technical Details for accurate information on the product.
In the case the material only comes in a predetermined color or doesn’t come with any color

Description:

Enhance your scanning capabilities with this advanced barcode scanner, engineered to read high-density barcodes with precision Featuring an auto-calibration mode activated via the teach-in key, this scanner intelligently adjusts to different barcode types, sample rates, and scanning widths based on the specific application Its compact design makes it easy to install in tight spaces, while compatibility with multiple barcode formats such as Code39, Code93, Code128, Codabar, Interleaved 2 of 5, Pharmacode, and UPC/EAN ensures versatility for a range of tasks.

Features and Benefits:

•Teach-in.

•Adjustable scanning width.

•Diagnosis functions.

•Min. readable barcode density: 0.191 mm.

•Deflection Angle: 3°.

•Number of Raster Scan Lines: 7.

•Read Range: 51 ... 254 mm.

•Light Source: Laser (red).

•Wavelength: 650 nm.

•Service Life (T = +25 °C): 40,000 h.

•Laser Class (EN 60825-1): 2.

•Max. Ambient Light: 8,600 Lux.

•Opening Angle: 70°.

•Barcode Printing Contrast: > 25%.

Specifications:
