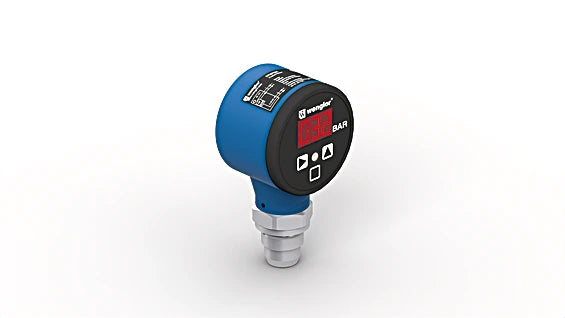

FFMP225 - Easy-to-Use Pressure Sensor -1 to 600 Bar Range

FFMP225 - Easy-to-Use Pressure Sensor -1 to 600 Bar Range

SKU: FFMP225 Download PDF

Variant:
  • FFMP225 - Easy-to-Use Pressure Sensor -1 to 600 Bar Range
Now $781.00
BEFORE   $0.00 Now $781.00
Sold out
Web pricing policyShipping calculated at checkout.
IN STOCK
Shipping Available
Free shipping on orders above $1000.* Only on standard purchases of cables and wires.
View full details
Product Information Resources Reviews
Product Information

*Data provided on this page is subject to change based on different manufacturers' variances
** Images are for display purposes only refer to Product Technical Details for accurate information on the product.
In the case the material only comes in a predetermined color or doesn’t come with any color

Description:

Experience precision with the UniBar pressure sensors, designed for measuring relative pressure in closed systems across a range of -1 to 600 bar These sensors feature an integrated display that simplifies operation, making it easy to monitor pressure readings at a glance The bright status indicator helps you quickly identify any sensors that require maintenance Additionally, the metallic sealing edge at the process connection eliminates the need for extra seals, enhancing reliability in your applications.

Features and Benefits:

    •Simple operation via the display.

    •Piggable with flush mounting.

    •Space-saving process connection thanks to small pressure membrane.

    •Highly visible output indicator.

    •Measuring relative pressure in closed systems for liquids and gases.

Specifications:

 Measuring Range 0 ... 250 bar
 Measurement Type relative
 Maximum overload pressure 500 bar
 Bursting pressure 1,000 bar
 Setting Range 4 ... 100 %
 Medium Liquids, gases
 Switching Hysteresis 2 %
 Measuring error < ± 0.5 %
 Temperature Drift 0.025 %/K
 Temperature of medium -25 ... 60 °C
 Ambient temperature -25 ... 80 °C
 EMC DIN EN 61326-2-3
 Shock resistance per DIN IEC 68-2-27 30 g / 11 ms
 Vibration resistance per DIN IEC 60068-2-6 20 g (10...2000 Hz)
 Supply Voltage 16 ... 32 V DC
 Current Consumption (Ub = 24 V) < 60 mA
 Number of Switching Outputs 2
 Response Time 30 ms
 Switching Output / Switching Current < 250 mA
 Switching Output Voltage Drop < 2 V
 Resolution 10 bit
 Short Circuit Protection yes
 Reverse Polarity Protection yes
 Protection Class III
 Setting Method Menu
 Housing Material Plastic, PBT, Plastic, PC
 Material Control Panel Polyester
 Material in contact with media Stainless steel, V4A (1.4404 / 316L), Stainless steel, V4A (1.4435/316L), Rubber, FKM
 Degree of Protection IP67
 Connection M12 × 1; 4-pin
 Process Connection G 1/2" CIP-capable
