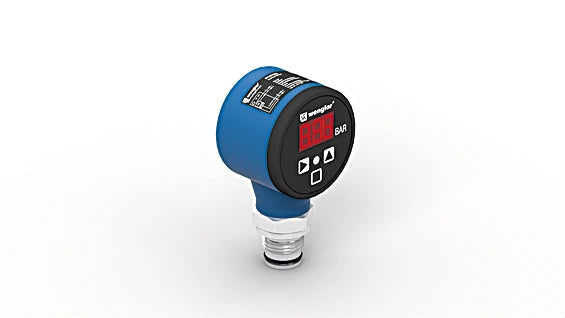

FFMP222 - UniBar 600 Bar Pressure Sensor with Display and No Seals

FFMP222 - UniBar 600 Bar Pressure Sensor with Display and No Seals

SKU: FFMP222 Download PDF

Variant:
  • FFMP222 - UniBar 600 Bar Pressure Sensor with Display and No Seals
Now $781.00
BEFORE   $0.00 Now $781.00
Sold out
Web pricing policyShipping calculated at checkout.
IN STOCK
Shipping Available
Free shipping on orders above $1000.* Only on standard purchases of cables and wires.
View full details
Product Information Resources Reviews
Product Information

*Data provided on this page is subject to change based on different manufacturers' variances
** Images are for display purposes only refer to Product Technical Details for accurate information on the product.
In the case the material only comes in a predetermined color or doesn’t come with any color

Description:

Introducing the UniBar pressure sensors, expertly engineered to measure relative pressure in sealed systems across a range of -1 to 600 bar Featuring an intuitive integrated display, these sensors simplify operation and monitoring The prominently visible switching status allows for swift identification of sensors that may require maintenance With a metallic sealing edge on the process connection, additional seals are unnecessary, ensuring effortless installation and reliability.

Ideal for a variety of mediums, UniBar pressure sensors are your go-to solution for accurate pressure measurement.

Features and Benefits:

    •Simple operation via the display.

    •Piggable with flush mounting.

    •Space-saving process connection thanks to small pressure membrane.

    •Highly visible output indicator.

Specifications:

 Measuring Range 0 ... 400 bar
 Measurement Type relative
 Maximum overload pressure 800 bar
 Bursting pressure 1,600 bar
 Setting Range 4 ... 100 %
 Medium Liquids, gases
 Switching Hysteresis 2 %
 Measuring error < ± 0.5 %
 Temperature Drift 0.025 %/K
 Temperature of medium -25 ... 80 °C
 Ambient temperature -25 ... 80 °C
 EMC DIN EN 61326-2-3
 Shock resistance per DIN IEC 68-2-27 30 g / 11 ms
 Vibration resistance per DIN IEC 60068-2-6 20 g (10...2000 Hz)
 Supply Voltage 16 ... 32 V DC
 Current Consumption (Ub = 24 V) < 60 mA
 Number of Switching Outputs 2
 Response Time 30 ms
 Switching Output/Switching Current < 250 mA
 Switching Output Voltage Drop < 2 V
 Resolution 10 bit
 Short Circuit Protection yes
 Reverse Polarity Protection yes
 Protection Class III
 Setting Method Menu
 Housing Material Plastic, PBT, Plastic, PC
 Material Control Panel Polyester
 Material in contact with media Stainless steel, V4A (1.4404 / 316L), Stainless steel, V4A (1.4435/316L), Rubber, FKM
 Degree of Protection IP67 *
 Connection M12 × 1; 4-pin
 Process Connection G 1/2"
