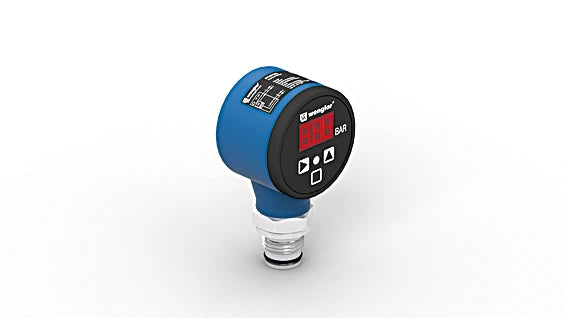

FFMP219 - UniBar Pressure Sensor, -1 to 600 Bar, Integrated Display

FFMP219 - UniBar Pressure Sensor, -1 to 600 Bar, Integrated Display

SKU: FFMP219 Download PDF

Variant:
  • FFMP219 - UniBar Pressure Sensor, -1 to 600 Bar, Integrated Display
Now $678.00
BEFORE   $0.00 Now $678.00
Sold out
Web pricing policyShipping calculated at checkout.
IN STOCK
Shipping Available
Free shipping on orders above $1000.* Only on standard purchases of cables and wires.
View full details
Product Information Resources Reviews
Product Information

*Data provided on this page is subject to change based on different manufacturers' variances
** Images are for display purposes only refer to Product Technical Details for accurate information on the product.
In the case the material only comes in a predetermined color or doesn’t come with any color

Description:

Introducing the UniBar pressure sensors, engineered to accurately measure relative pressure in closed systems across various mediums, with a capability of -1 to 600 bar Featuring an integrated display, these sensors promote effortless operation by clearly indicating switching status, which aids in quickly identifying any sensors that may require maintenance Additionally, the metallic sealing edge on the process connection means that there's no need for extra seals, ensuring a reliable and efficient setup.

Features and Benefits:

    •Simple operation via the display.

    •Piggable with flush mounting.

    •Space-saving process connection thanks to small pressure membrane.

    •Highly visible output indicator.

Specifications:

 Measuring Range: 0 ... 100 bar
 Measurement Type: relative
 Maximum overload pressure: 200 bar
 Bursting pressure: 400 bar
 Setting Range: 4 ... 100 %
 Medium: Liquids, gases
 Switching Hysteresis: 2 %
 Measuring error: < ± 0.5 %
 Temperature Drift: 0.025 %/K
 Temperature of medium: -25 ... 80 °C
 Ambient temperature: -25 ... 80 °C
 EMC: DIN EN 61326-2-3
 Shock resistance: 30 g / 11 ms
 Vibration resistance: 20 g (10...2000 Hz)
 Supply Voltage: 16 ... 32 V DC
 Current Consumption: < 60 mA (Ub = 24 V)
 Number of Switching Outputs: 2
 Response Time: 30 ms
 Switching Output / Switching Current: < 250 mA
 Switching Output Voltage Drop: < 2 V
 Resolution: 10 bit
 Short Circuit Protection: yes
 Reverse Polarity Protection: yes
 Protection Class: III
 Setting Method: Menu
 Housing Material: Plastic, PBT; Plastic, PC
 Material Control Panel: Polyester
 Material in contact with media: Stainless steel, V4A (1.4404 / 316L); Stainless steel, V4A (1.4435/316L); Rubber, FKM
 Degree of Protection: IP67
 Connection: M12 × 1; 4-pin
 Process Connection: G 1/2"
