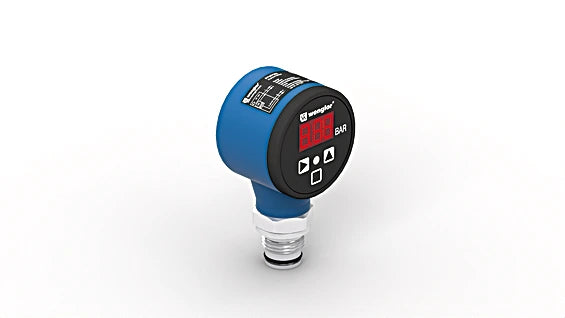

FFMP216 - User-Friendly Pressure Sensor with Display, -1 to 600 Bar

FFMP216 - User-Friendly Pressure Sensor with Display, -1 to 600 Bar

SKU: FFMP216 Download PDF

Variant:
  • FFMP216 - User-Friendly Pressure Sensor with Display, -1 to 600 Bar
Now $678.00
BEFORE   $0.00 Now $678.00
Sold out
Web pricing policyShipping calculated at checkout.
IN STOCK
Shipping Available
Free shipping on orders above $1000.* Only on standard purchases of cables and wires.
View full details
Product Information Resources Reviews
Product Information

*Data provided on this page is subject to change based on different manufacturers' variances
** Images are for display purposes only refer to Product Technical Details for accurate information on the product.
In the case the material only comes in a predetermined color or doesn’t come with any color

Description:

Introducing the UniBar pressure sensors, expertly crafted to monitor relative pressure in closed systems across a broad range, from -1 to 600 bar Featuring an intuitive integrated display, these sensors make observation straightforward and convenient The easily visible switching status indicator allows for quick assessments, ensuring timely maintenance when required With a robust metallic sealing edge, there’s no need for extra seals at the process connection, enhancing reliability and performance.

Features and Benefits:

    •Simple operation via the display.

    •Piggable with flush mounting.

    •Space-saving process connection thanks to small pressure membrane.

    •Highly visible output indicator.

    •Suitable for measuring pressure in liquids and gases.

Specifications:

 Measuring Range 0 ... 10 bar
 Measurement Type relative
 Maximum overload pressure 20 bar
 Bursting pressure 40 bar
 Setting Range 4 ... 100 %
 Switching Hysteresis 2 %
 Measuring error < ± 0.5 %
 Temperature Drift 0.025 %/K
 Temperature of medium -25 ... 80 °C
 Ambient temperature -25 ... 80 °C
 EMC DIN EN 61326-2-3
 Shock resistance per DIN IEC 68-2-27 30 g / 11 ms
 Vibration resistance per DIN IEC 60068-2-6 20 g (10...2000 Hz)
 Supply Voltage 16 ... 32 V DC
 Current Consumption (Ub = 24 V) < 60 mA
 Number of Switching Outputs 2
 Response Time 30 ms
 Switching Output / Switching Current < 250 mA
 Switching Output Voltage Drop < 2 V
 Resolution 10 bit
 Short Circuit Protection yes
 Reverse Polarity Protection yes
 Protection Class III
 Setting Method Menu
 Housing Material Plastic, PBT, Plastic, PC
 Material Control Panel Polyester
 Material in contact with media Stainless steel, V4A (1.4404 / 316L), Stainless steel, V4A (1.4435/316L), Rubber, FKM
 Degree of Protection IP65 *
 Connection M12 × 1; 4-pin
 Process Connection G 1/2"
