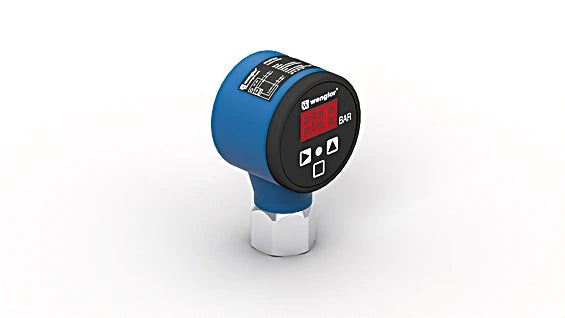

FFMP215 - UniBar Pressure Sensor - Ranges from -1 to 600 Bar, Easy Display

*Data provided on this page is subject to change based on different manufacturers' variances
** Images are for display purposes only refer to Product Technical Details for accurate information on the product.
In the case the material only comes in a predetermined color or doesn’t come with any color

Description:

Experience accurate pressure monitoring with the UniBar pressure sensors, specially designed for closed systems These sensors can measure relative pressure from -1 to 600 bar, offering user-friendly operation through an integrated display The clearly visible indicator allows for quick identification and maintenance of sensors Built to withstand maximum overload pressures of 1,200 bar and bursting pressures of up to 1,600 bar, these sensors ensure reliable performance in various environments.

Features and Benefits:

•Simple operation via the display.

•Highly visible output indicator.

•Measurement Type: relative.

•Switching hysteresis of 2%.

•Measuring error of < ± 0.5%.

•Temperature drift of 0.025 %/K.

•Shock resistance per DIN IEC 68-2-27: 30 g / 11 ms.

•Vibration resistance per DIN IEC 60068-2-6: 20 g (10...2000 Hz).

•Measurement of relative pressure in liquids and gases in closed systems.

Specifications:
