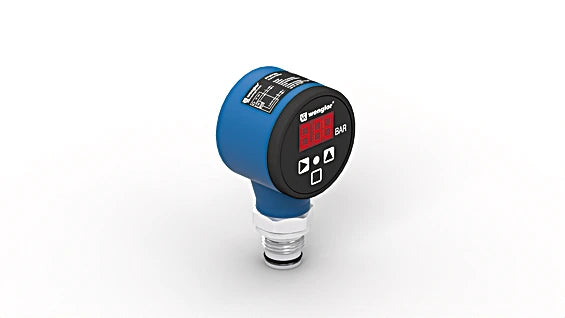

FFMP187 - Easy-Read Pressure Sensor -1 to 600 Bar Range

FFMP187 - Easy-Read Pressure Sensor -1 to 600 Bar Range

SKU: FFMP187 Download PDF

Variant:
  • FFMP187 - Easy-Read Pressure Sensor -1 to 600 Bar Range
Now $781.00
BEFORE   $0.00 Now $781.00
Sold out
Web pricing policyShipping calculated at checkout.
IN STOCK
Shipping Available
Free shipping on orders above $1000.* Only on standard purchases of cables and wires.
View full details
Product Information Resources Reviews
Product Information

*Data provided on this page is subject to change based on different manufacturers' variances
** Images are for display purposes only refer to Product Technical Details for accurate information on the product.
In the case the material only comes in a predetermined color or doesn’t come with any color

Description:

Experience accurate pressure measurement with the UniBar pressure sensors, which are capable of gauging relative pressure in closed systems across a wide range from -1 to 600 bar Featuring an integrated display for user-friendly operation, these sensors include a clearly visible status indicator, making it effortless to identify which units need maintenance Additionally, the metallic sealing edge on the process connection eliminates the need for extra seals, enhancing reliability and efficiency.

Features and Benefits:

    •Simple operation via the display.

    •Piggable with flush mounting.

    •Space-saving process connection thanks to small pressure membrane.

    •Highly visible output indicator.

Specifications:

 Measuring Range 0 ... 600 bar
 Measurement Type relative
 Maximum overload pressure 1,200 bar
 Bursting pressure 1,600 bar
 Setting Range 4 ... 100 %
 Medium Liquids, gases
 Switching Hysteresis 2 %
 Measuring error < ± 0.5 %
 Temperature Drift 0.025 %/K
 Temperature of medium -25 ... 80 °C
 Ambient temperature -25 ... 80 °C
 EMC DIN EN 61326-2-3
 Shock resistance 30 g / 11 ms
 Vibration resistance 20 g (10...2000 Hz)
 Supply Voltage 16 ... 32 V DC
 Current Consumption < 60 mA
 Number of Switching Outputs 1
 Response Time 30 ms
 Switching Output / Switching Current < 250 mA
 Switching Output Voltage Drop < 2 V
 Analog Output 4...20 mA
 Signal source Pressure
 Resolution 10 bit
 Current Output Load Resistance < 500 Ohm
 Short Circuit Protection yes
 Reverse Polarity Protection yes
 Protection Class III
 Setting Method Menu
 Housing Material Plastic, PBT, Plastic, PC
 Material Control Panel Polyester
 Material in contact with media Stainless steel, V4A (1.4404 / 316L), Stainless steel, V4A (1.4435/316L), Rubber, FKM
 Degree of Protection IP67 *
 Connection M12 × 1; 4-pin
 Process Connection G 1/2"
 MTTFd (EN ISO 13849-1) 1,201.51 a
 Output Analog Output yes
 PNP NO yes
 Adjustable parameters Circuit NC, NC/NO, NO
