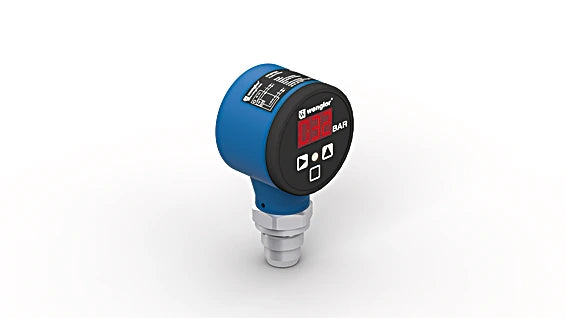

FFMP181 - UniBar 0-600 Bar Pressure Sensor with Integrated Display

*Data provided on this page is subject to change based on different manufacturers' variances
** Images are for display purposes only refer to Product Technical Details for accurate information on the product.
In the case the material only comes in a predetermined color or doesn’t come with any color

Description:

Experience precision with the UniBar pressure sensors, designed to effectively gauge relative pressure in sealed systems across a range of -1 to 600 bar User-friendly and efficient, these sensors boast an integrated display that clearly indicates operational status, making it easy to identify any units needing maintenance The robust metallic sealing edge on the process connection eliminates the need for additional seals.

Key features include effortless operation through the display, compatibility with piggable systems thanks to its flush mounting, and a compact pressure membrane for a space-saving process connection The sensors deliver highly visible output indicators for convenience Specifications include a measurement range of 0 to 400 bar, relative measurement type, a maximum overload capacity of 800 bar, and a bursting pressure of up to 1,600 bar.

With a setting range between 4 to 100%, they accommodate both liquids and gases The switching hysteresis stands at 2%, while measurement accuracy is better than ± 05% Designed for versatility, these sensors operate within a medium temperature range of -25 to 60 °C and an ambient temperature range of -25 to 80 °C, with a temperature drift of 0025% per K, making them a reliable choice for various applications.

Features and Benefits:

•Simple operation via the display.

•Piggable with flush mounting.

•Space-saving process connection thanks to small pressure membrane.

•Highly visible output indicator.

Specifications:
