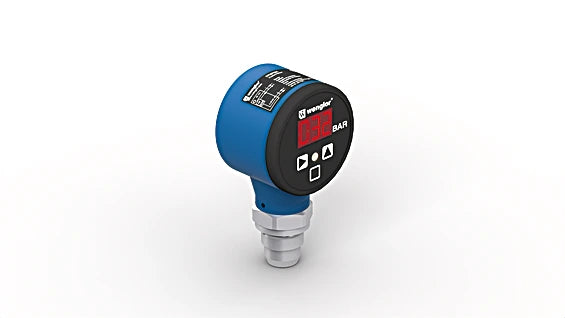

FFMP162 - UniBar Pressure Sensor with Integrated Display, -1 to 600 bar

FFMP162 - UniBar Pressure Sensor with Integrated Display, -1 to 600 bar

SKU: FFMP162 Download PDF

Variant:
  • FFMP162 - UniBar Pressure Sensor with Integrated Display, -1 to 600 bar
Now $721.00
BEFORE   $0.00 Now $721.00
Sold out
Web pricing policyShipping calculated at checkout.
IN STOCK
Shipping Available
Free shipping on orders above $1000.* Only on standard purchases of cables and wires.
View full details
Product Information Resources Reviews
Product Information

*Data provided on this page is subject to change based on different manufacturers' variances
** Images are for display purposes only refer to Product Technical Details for accurate information on the product.
In the case the material only comes in a predetermined color or doesn’t come with any color

Description:

Introducing the UniBar pressure sensors, engineered to accurately measure relative pressure in closed systems across a range of -1 to 600 bar These sensors come equipped with an integrated display for user-friendly operation The clear status indicator allows for easy identification of sensors requiring maintenance Additionally, the metallic sealing edge on the process connection eliminates the need for extra seals, making installation seamless and efficient.

Perfect for various applications, UniBar pressure sensors offer reliability and ease of use.

Features and Benefits:

    •Simple operation via the display.

    •Piggable with flush mounting.

    •Space-saving process connection thanks to small pressure membrane.

    •Highly visible output indicator.

Specifications:

 Measuring Range 0 ... 25 bar
 Measurement Type relative
 Maximum overload pressure 50 bar
 Bursting pressure 100 bar
 Setting Range 4 ... 100 %
 Medium Liquids, gases
 Switching Hysteresis 2 %
 Measuring error < ± 0.5 %
 Temperature Drift 0.025 %/K
 Temperature of medium -25 ... 60 °C
 Ambient temperature -25 ... 80 °C
 EMC DIN EN 61326-2-3
 Shock resistance per DIN IEC 68-2-27 30 g / 11 ms
 Vibration resistance per DIN IEC 60068-2-6 20 g (10...2000 Hz)
 Supply Voltage 16 ... 32 V DC
 Current Consumption < 60 mA
 Number of Switching Outputs 1
 Response Time 30 ms
 Relay Output / Switching Current (24 VDC) < 1 A
 Analog Output 0...10 V
 Signal source Pressure
 Resolution 10 bit
 Short Circuit Protection yes
 Reverse Polarity Protection yes
 Protection Class III
 Setting Method Menu
 Housing Material Plastic, PBT, Plastic, PC
 Material Control Panel Polyester
 Material in contact with media Stainless steel, V4A (1.4404 / 316L), Stainless steel, V4A (1.4435/316L), Rubber, FKM
 Degree of Protection IP67
 Connection M12 × 1; 5-pin
 Process Connection G 1/2" CIP-capable
 MTTFd (EN ISO 13849-1) 769.77 a
 Output Analog Output yes, Relay -NO yes
 Circuit NC, NC/NO, NO
 Other parameters Selectable measurement range, Switching point, All other parameters can be found in the product documentation.
