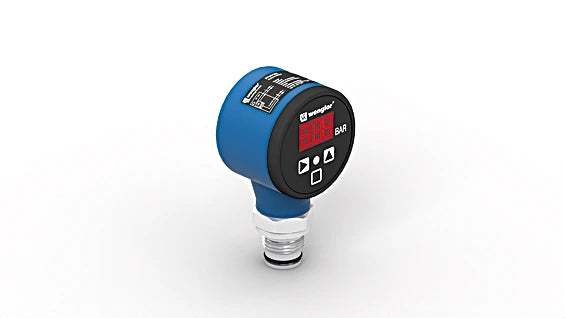

FFMP155 - UniBar Pressure Sensor, -1 to 600 Bar with Display

FFMP155 - UniBar Pressure Sensor, -1 to 600 Bar with Display

SKU: FFMP155 Download PDF

Variant:
  • FFMP155 - UniBar Pressure Sensor, -1 to 600 Bar with Display
Now $828.00
BEFORE   $0.00 Now $828.00
Sold out
Web pricing policyShipping calculated at checkout.
IN STOCK
Shipping Available
Free shipping on orders above $1000.* Only on standard purchases of cables and wires.
View full details
Product Information Resources Reviews
Product Information

*Data provided on this page is subject to change based on different manufacturers' variances
** Images are for display purposes only refer to Product Technical Details for accurate information on the product.
In the case the material only comes in a predetermined color or doesn’t come with any color

Description:

Introducing the UniBar pressure sensors, engineered for precise measurement of relative pressure in closed systems across a range of -1 to 600 bar These sensors feature a user-friendly integrated display, making monitoring effortless Their clear switching status indication allows for quick identification of sensors in need of maintenance Additionally, the metallic sealing edge at the process connection eliminates the need for extra seals, enhancing reliability and functionality.

Features and Benefits:

    •Simple operation via the display.

    •Piggable with flush mounting.

    •Space-saving process connection thanks to small pressure membrane.

    •Highly visible output indicator.

Specifications:

 Measuring Range 0 ... 400 bar
 Measurement Type relative
 Maximum overload pressure 800 bar
 Bursting pressure 1,600 bar
 Setting Range 4 ... 100 %
 Medium Liquids, gases
 Switching Hysteresis 2 %
 Measuring error < ± 0.5 %
 Temperature Drift 0.025 %/K
 Temperature of medium -25 ... 80 °C
 Ambient temperature -25 ... 80 °C
 Supply Voltage 16 ... 32 V DC
 Current Consumption (Ub = 24 V) < 60 mA
 Number of Switching Outputs 1
 Response Time 30 ms
 Relay Output / Switching Current (24 VDC) < 1 A
 Analog Output yes
 Resolution 10 bit
 Housing Material Plastic, PBT, Plastic, PC
 Material in contact with media Stainless steel, V4A (1.4404 / 316L), Stainless steel, V4A (1.4435/316L), Rubber, FKM
 Degree of Protection IP67
 Connection M12 × 1; 5-pin
 Process Connection G 1/2"
 MTTFd (EN ISO 13849-1) 769.77 a
 Relay -NO yes
