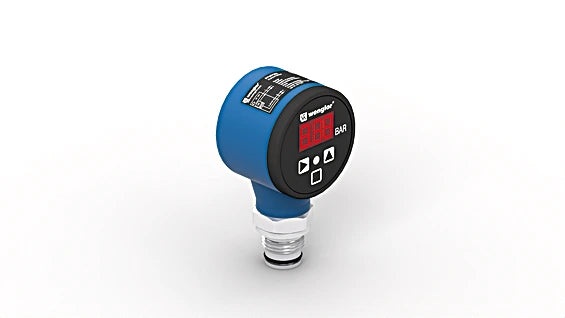

FFMP153 - UniBar Pressure Sensor -1 to 600 Bar with Display

FFMP153 - UniBar Pressure Sensor -1 to 600 Bar with Display

SKU: FFMP153 Download PDF

Variant:
  • FFMP153 - UniBar Pressure Sensor -1 to 600 Bar with Display
Now $828.00
BEFORE   $0.00 Now $828.00
Sold out
Web pricing policyShipping calculated at checkout.
IN STOCK
Shipping Available
Free shipping on orders above $1000.* Only on standard purchases of cables and wires.
View full details
Product Information Resources Reviews
Product Information

*Data provided on this page is subject to change based on different manufacturers' variances
** Images are for display purposes only refer to Product Technical Details for accurate information on the product.
In the case the material only comes in a predetermined color or doesn’t come with any color

Description:

Experience precision with the UniBar pressure sensors, designed to accurately gauge relative pressure in enclosed systems across a range of -1 to 600 bar Featuring an integrated display, these sensors are user-friendly and allow for quick monitoring The easily noticeable switching status display facilitates swift identification of sensors requiring maintenance Additionally, the metallic sealing edge on the process connection eliminates the need for extra seals, enhancing reliability and efficiency.

Features and Benefits:

    •Simple operation via the display.

    •Piggable with flush mounting.

    •Space-saving process connection thanks to small pressure membrane.

    •Highly visible output indicator.

    •Measuring relative pressure in liquids and gases in closed systems.

Specifications:

 Measuring Range 0 ... 160 bar
 Measurement Type relative
 Maximum overload pressure 320 bar
 Bursting pressure 640 bar
 Setting Range 4 ... 100 %
 Medium Liquids, gases
 Switching Hysteresis 2 %
 Measuring error < ± 0.5 %
 Temperature Drift 0.025 %/K
 Temperature of medium -25 ... 80 °C
 Ambient temperature -25 ... 80 °C
 EMC DIN EN 61326-2-3
 Shock resistance 30 g / 11 ms
 Vibration resistance 20 g (10...2000 Hz)
 Supply Voltage 16 ... 32 V DC
 Current Consumption < 60 mA
 Number of Switching Outputs 1
 Response Time 30 ms
 Relay Output < 1 A
 Analog Output 0...10 V
 Resolution 10 bit
 Short Circuit Protection yes
 Reverse Polarity Protection yes
 Protection Class III
 Setting Method Menu
 Housing Material Plastic, PBT, Plastic, PC
 Material in contact with media Stainless steel, V4A (1.4404 / 316L), Rubber, FKM
 Degree of Protection IP67
 Connection M12 × 1; 5-pin
 Process Connection G 1/2"
 MTTFd 769.77 a
 Adjustable parameters Selectable measurement range
