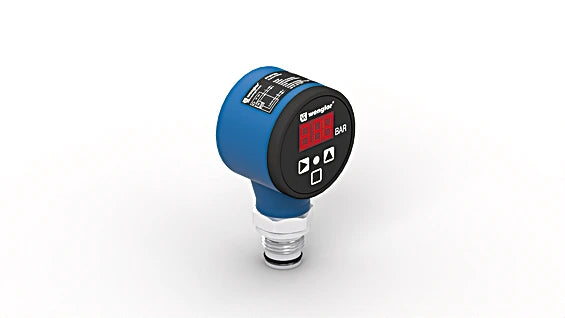

FFMP151 - Easy-to-Use Pressure Sensor, Range -1 to 600 Bar

FFMP151 - Easy-to-Use Pressure Sensor, Range -1 to 600 Bar

SKU: FFMP151 Download PDF

Variant:
  • FFMP151 - Easy-to-Use Pressure Sensor, Range -1 to 600 Bar
Now $721.00
BEFORE   $0.00 Now $721.00
Sold out
Web pricing policyShipping calculated at checkout.
IN STOCK
Shipping Available
Free shipping on orders above $1000.* Only on standard purchases of cables and wires.
View full details
Product Information Resources Reviews
Product Information

*Data provided on this page is subject to change based on different manufacturers' variances
** Images are for display purposes only refer to Product Technical Details for accurate information on the product.
In the case the material only comes in a predetermined color or doesn’t come with any color

Description:

The UniBar pressure sensors are designed to accurately gauge the relative pressure in closed systems across various media, ranging from -1 to 600 bar Featuring a user-friendly integrated display, these sensors make operation straightforward Their highly visible status indicator allows for quick identification of sensors that need maintenance Additionally, the metallic sealing edge at the process connection eliminates the need for extra seals, ensuring a reliable setup.

Features and Benefits:

    •Simple operation via the display.

    •Piggable with flush mounting.

    •Space-saving process connection thanks to small pressure membrane.

    •Highly visible output indicator.

Specifications:

 Measuring Range: 0 ... 40 bar
 Measurement Type: relative
 Maximum overload pressure: 80 bar
 Bursting pressure: 160 bar
 Setting Range: 4 ... 100 %
 Medium: Liquids, gases
 Switching Hysteresis: 2 %
 Measuring error: < ± 0.5 %
 Temperature Drift: 0.025 %/K
 Temperature of medium: -25 ... 80 °C
 Ambient temperature: -25 ... 80 °C
 EMC: DIN EN 61326-2-3
 Shock resistance: 30 g / 11 ms
 Vibration resistance: 20 g (10...2000 Hz)
 Supply Voltage: 16 ... 32 V DC
 Current Consumption (Ub = 24 V): < 60 mA
 Number of Switching Outputs: 1
 Response Time: 30 ms
 Relay Output / Switching Current (24 VDC): < 1 A
 Analog Output: 0...10 V
 Signal source: Pressure
 Resolution: 10 bit
 Short Circuit Protection: yes
 Reverse Polarity Protection: yes
 Protection Class: III
 Setting Method: Menu
 Housing Material: Plastic, PBT, Plastic, PC
 Material Control Panel: Polyester
 Material in contact with media: Stainless steel, V4A (1.4404 / 316L), Stainless steel, V4A (1.4435/316L), Rubber, FKM
 Degree of Protection: IP67 *
 Connection: M12 × 1; 5-pin
 Process Connection: G 1/2"
 MTTFd (EN ISO 13849-1): 769.77 a
 Output Analog Output: yes
 Relay -NO: yes
 Adjustable parameters Circuit: NC, NC/NO, NO
 Other parameters: Selectable measurement range, All other parameters can be found in the product documentation.
