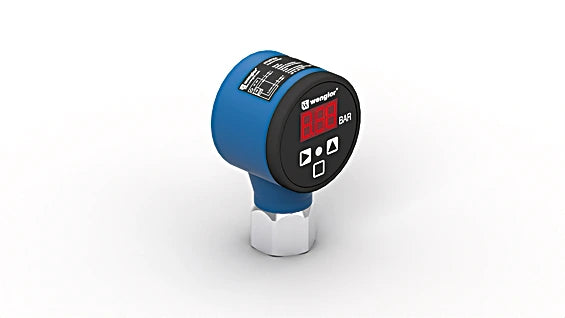

FFMP138 - 600 Bar UniBar Pressure Sensor with Integrated Display

FFMP138 - 600 Bar UniBar Pressure Sensor with Integrated Display

SKU: FFMP138 Download PDF

Variant:
  • FFMP138 - 600 Bar UniBar Pressure Sensor with Integrated Display
Now $678.00
BEFORE   $0.00 Now $678.00
Sold out
Web pricing policyShipping calculated at checkout.
IN STOCK
Shipping Available
Free shipping on orders above $1000.* Only on standard purchases of cables and wires.
View full details
Product Information Resources Reviews
Product Information

*Data provided on this page is subject to change based on different manufacturers' variances
** Images are for display purposes only refer to Product Technical Details for accurate information on the product.
In the case the material only comes in a predetermined color or doesn’t come with any color

Description:

Introducing the UniBar pressure sensors, expertly designed to gauge relative pressure in closed systems across a vast range of -1 to 600 bar These sensors come equipped with an integrated display for effortless operation, providing a clear indication of switching status to facilitate quick identification during maintenance Typically, orders are processed for shipping within 15 days.

Features and Benefits:

    •Simple operation via the display.

    •Highly visible output indicator.

    •Sensor-specific data.

    •Used in closed systems to measure relative pressure of liquids and gases.

Specifications:

 Measuring Range 0 ... 400 bar
 Measurement Type relative
 Maximum overload pressure 800 bar
 Bursting pressure 1,600 bar
 Setting Range 4 ... 100 %
 Medium Liquids, gases
 Switching Hysteresis 2 %
 Measuring error < ± 0.5 %
 Temperature Drift 0.025 %/K
 Temperature of medium -25 ... 80 °C
 Ambient temperature -25 ... 80 °C
 Supply Voltage 16 ... 32 V DC
 Current Consumption < 60 mA
 Number of Switching Outputs 1
 Response Time 30 ms
 Relay Output / Switching Current (24 VDC) < 1 A
 Analog Output 0...10 V
 Signal source Pressure
 Resolution 10 bit
 Short Circuit Protection yes
 Reverse Polarity Protection yes
 Protection Class III
 Setting Method Menu
 Housing Material Plastic, PBT, Plastic, PC
 Material Control Panel Polyester
 Material in contact with media Stainless steel, V4A (1.4404 / 316L), Stainless steel, V4A (1.4435/316L), Rubber, FKM
 Degree of Protection IP67
 Connection M12 × 1; 5-pin
 Process Connection G 1/4"
 MTTFd (EN ISO 13849-1) 769.77 a
 Output Analog Output yes
 Relay -NO yes
 Adjustable parameters Circuit NC, NC/NO, NO
 Other parameters Selectable measurement range
