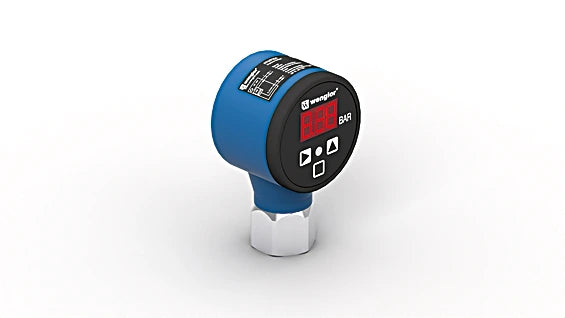

FFMP135 - Accurate Pressure Sensor for Liquids & Gases, -1 to 600 bar

*Data provided on this page is subject to change based on different manufacturers' variances
** Images are for display purposes only refer to Product Technical Details for accurate information on the product.
In the case the material only comes in a predetermined color or doesn’t come with any color

Description:

Introducing the UniBar pressure sensors, expertly crafted to measure relative pressure in sealed systems across a wide range of -1 to 600 bar These sensors are user-friendly, featuring an integrated display that clearly shows the switching status, allowing for quick identification of any affected units during maintenance tasks Suitable for both liquids and gases, this reliable pressure sensor is ideal for various applications, ensuring optimal performance in diverse environments.

Features and Benefits:

•Simple operation via the integrated display.

•Highly visible output indicator.

•Sensor-specific data for enhanced performance.

•Wide measuring range of 0 ... 250 bar.

•High maximum overload pressure up to 500 bar.

•Low measurement error of < ± 0.5 %.

•Good temperature drift performance at 0.025 %/K.

•Suitable for various environmental conditions (temperature range -25 to 80 °C).

•Shock and vibration resistant as per standards.

•Short circuit and reverse polarity protection.

•Built with durable materials for extended lifespan.

•IP67 protection class for dust and water resistance.

Specifications:
