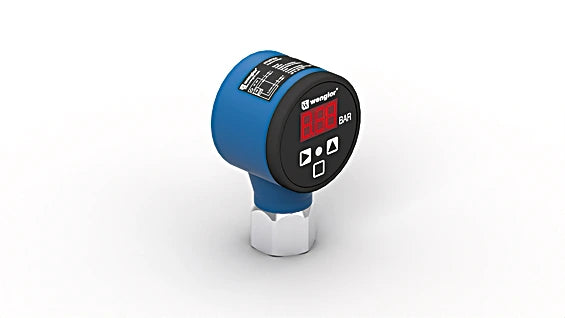

FFMP116 - UniBar Pressure Sensor, -1 to 600 Bar with Integrated Display

FFMP116 - UniBar Pressure Sensor, -1 to 600 Bar with Integrated Display

SKU: FFMP116 Download PDF

Variant:
  • FFMP116 - UniBar Pressure Sensor, -1 to 600 Bar with Integrated Display
Now $678.00
BEFORE   $0.00 Now $678.00
Sold out
Web pricing policyShipping calculated at checkout.
IN STOCK
Shipping Available
Free shipping on orders above $1000.* Only on standard purchases of cables and wires.
View full details
Product Information Resources Reviews
Product Information

*Data provided on this page is subject to change based on different manufacturers' variances
** Images are for display purposes only refer to Product Technical Details for accurate information on the product.
In the case the material only comes in a predetermined color or doesn’t come with any color

Description:

Introducing the UniBar pressure sensors, expertly engineered to monitor relative pressure in closed systems across a wide spectrum of -1 to 600 bar These sensors come with a built-in display for effortless operation, allowing users to easily read measurements Additionally, the highly visible status indicators facilitate quick identification of sensors that require maintenance, ensuring smooth operational efficiency.

Features and Benefits:

    •Simple operation via the display.

    •Highly visible output indicator.

    •Sensor-specific data.

    •Measuring Range: 0 ... 600 bar.

    •Measurement Type: relative.

    •Maximum overload pressure: 1,200 bar.

    •Bursting pressure: 1,600 bar.

    •Setting Range: 4 ... 100 %.

    •Medium: Liquids, gases.

    •Switching Hysteresis: 2 %.

    •Measuring error: < ± 0.5 %.

    •Temperature Drift: 0.025 %/K.

    •Shock resistance per DIN IEC 68-2-27: 30 g / 11 ms.

    •Vibration resistance per DIN IEC 60068-2-6: 20 g (10...2000 Hz).

Specifications:

 Environmental conditions - Temperature of medium -25...80 °C
 Environmental conditions - Ambient temperature -25...80 °C
 EMC DIN EN 61326-2-3
 Electrical Data - Supply Voltage 16 ... 32 V DC
 Electrical Data - Current Consumption (Ub = 24 V) < 60 mA
 Electrical Data - Number of Switching Outputs 1
 Electrical Data - Response Time 30 ms
 Electrical Data - Relay Output / Switching Current (24 VDC) < 1 A
 Electrical Data - Analog Output 4...20 mA
 Electrical Data - Signal source Pressure
 Electrical Data - Resolution 10 bit
 Electrical Data - Current Output Load Resistance < 500 Ohm
 Electrical Data - Short Circuit Protection yes
 Electrical Data - Reverse Polarity Protection yes
 Electrical Data - Protection Class III
 Mechanical Data - Setting Method Menu
 Mechanical Data - Housing Material Plastic, PBT, Plastic, PC
 Mechanical Data - Material Control Panel Polyester
 Mechanical Data - Material in contact with media Stainless steel, V4A (1.4404 / 316L), Stainless steel, V4A (1.4435/316L), Rubber, FKM
 Mechanical Data - Degree of Protection IP67 *
 Mechanical Data - Connection M12 × 1; 5-pin
 Mechanical Data - Process Connection G 3/8"
 Safety-relevant Data - MTTFd (EN ISO 13849-1) 769.77 a
 Output - Analog Output yes
 Output - Relay -NO yes
 Adjustable parameters - Circuit NC, NC/NO, NO
 Other parameters Selectable measurement range, Switching point
