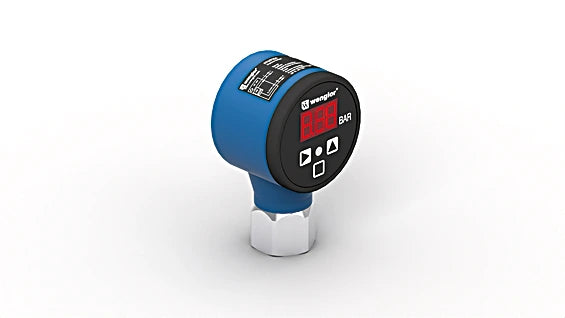

FFMP111 - UniBar 600 Bar Pressure Sensor with Display Functionality

*Data provided on this page is subject to change based on different manufacturers' variances
** Images are for display purposes only refer to Product Technical Details for accurate information on the product.
In the case the material only comes in a predetermined color or doesn’t come with any color

Description:

Introducing the UniBar pressure sensors, expertly designed to monitor relative pressure within closed systems, accommodating a wide range from -1 to 600 bar With a user-friendly integrated display, these sensors simplify operation and maintenance The prominent output indicator makes it effortless to pinpoint specific sensors during maintenance tasks Capable of handling a maximum overload of 500 bar and a bursting pressure of 1,000 bar, these sensors guarantee reliable performance and precision for various applications.

Features and Benefits:

•Simple operation via the display.

•Highly visible output indicator.

•Sensor-specific data.

•Measuring Range: 0 ... 250 bar.

•Maximum overload pressure: 500 bar.

•Bursting pressure: 1,000 bar.

•Switching Hysteresis: 2%.

•Measuring error: < ± 0.5%.

•Temperature Drift: 0.025%/K.

•EMC: DIN EN 61326-2-3.

•Shock resistance per DIN IEC 68-2-27: 30 g / 11 ms.

•Vibration resistance per DIN IEC 60068-2-6: 20 g (10...2000 Hz).

Specifications:
