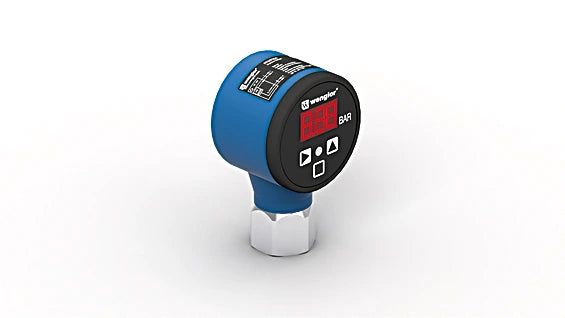

FFMP104 - Reliable Pressure Sensor Measuring -1 to 600 Bar with Display

FFMP104 - Reliable Pressure Sensor Measuring -1 to 600 Bar with Display

SKU: FFMP104 Download PDF

Variant:
  • FFMP104 - Reliable Pressure Sensor Measuring -1 to 600 Bar with Display
Now $572.00
BEFORE   $0.00 Now $572.00
Sold out
Web pricing policyShipping calculated at checkout.
IN STOCK
Shipping Available
Free shipping on orders above $1000.* Only on standard purchases of cables and wires.
View full details
Product Information Resources Reviews
Product Information

*Data provided on this page is subject to change based on different manufacturers' variances
** Images are for display purposes only refer to Product Technical Details for accurate information on the product.
In the case the material only comes in a predetermined color or doesn’t come with any color

Description:

Experience precision with UniBar pressure sensors, designed to measure relative pressure within closed systems across a range of -1 to 600 bar These sensors are user-friendly, featuring an integrated display that makes monitoring straightforward The bright switching status indicator allows for quick identification of any sensors needing maintenance, streamlining your upkeep process.

Features and Benefits:

    •Simple operation via the display.

    •Highly visible output indicator.

    •Sensor-specific data.

Specifications:

 Measuring Range 0 ... 100 bar
 Measurement Type relative
 Maximum overload pressure 200 bar
 Bursting pressure 400 bar
 Setting Range 4 ... 100 %
 Medium Liquids, gases
 Switching Hysteresis 2 %
 Measuring error < ± 0.5 %
 Temperature Drift 0.025 %/K
 Temperature of medium -25 ... 80 °C
 Ambient temperature -25 ... 80 °C
 EMC DIN EN 61326-2-3
 Shock resistance per DIN IEC 68-2-27 30 g / 11 ms
 Vibration resistance per DIN IEC 60068-2-6 20 g (10...2000 Hz)
 Supply Voltage 16 ... 32 V DC
 Current Consumption (Ub = 24 V) < 60 mA
 Number of Switching Outputs 1
 Response Time 30 ms
 Relay Output / Switching Current (24 VDC) < 1 A
 Analog Output 4...20 mA
 Signal source Pressure
 Resolution 10 bit
 Current Output Load Resistance < 500 Ohm
 Short Circuit Protection yes
 Reverse Polarity Protection yes
 Protection Class III
 Setting Method Menu
 Housing Material Plastic, PBT, Plastic, PC
 Material Control Panel Polyester
 Material in contact with media Stainless steel, V4A (1.4404 / 316L), Stainless steel, V4A (1.4435/316L), Rubber, FKM
 Degree of Protection IP67 *
 Connection M12 × 1; 5-pin
 Process Connection G 3/8"
 MTTFd (EN ISO 13849-1) 769.77 a
 Output Analog Output yes
 Relay -NO yes
 Adjustable parameters Circuit NC, NC/NO, NO
 Selectable measurement range Switching point: All other parameters can be found in the product documentation.
