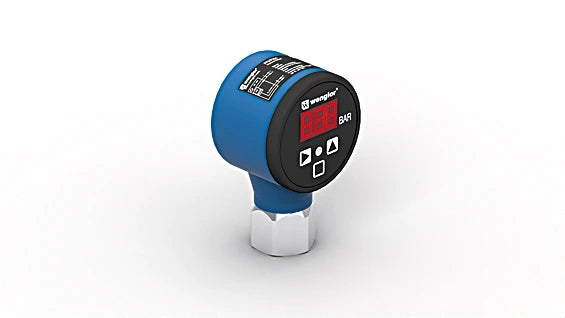

FFMP101 - UniBar Pressure Sensor, -1 to 600 bar Range, Easy Display

FFMP101 - UniBar Pressure Sensor, -1 to 600 bar Range, Easy Display

SKU: FFMP101 Download PDF

Variant:
  • FFMP101 - UniBar Pressure Sensor, -1 to 600 bar Range, Easy Display
Now $572.00
BEFORE   $0.00 Now $572.00
Sold out
Web pricing policyShipping calculated at checkout.
IN STOCK
Shipping Available
Free shipping on orders above $1000.* Only on standard purchases of cables and wires.
View full details
Product Information Resources Reviews
Product Information

*Data provided on this page is subject to change based on different manufacturers' variances
** Images are for display purposes only refer to Product Technical Details for accurate information on the product.
In the case the material only comes in a predetermined color or doesn’t come with any color

Description:

The UniBar pressure sensors are designed to accurately gauge the relative pressure within closed systems across various media, with a measurement range of -1 to 600 bar Featuring an integrated display for straightforward operation, these sensors make it easy to monitor pressure levels Additionally, the clear switching status indicator aids in quickly identifying specific sensors during maintenance tasks.

Features and Benefits:

    •Simple operation via the display.

    •Highly visible output indicator.

    •Sensor-specific data.

Specifications:

 Measuring Range 0 ... 40 bar
 Measurement Type relative
 Maximum overload pressure 80 bar
 Bursting pressure 160 bar
 Setting Range 4 ... 100 %
 Medium Liquids, gases
 Switching Hysteresis 2 %
 Measuring error < ± 0.5 %
 Temperature Drift 0.025 %/K
 Temperature of medium -25 ... 80 °C
 Ambient temperature -25 ... 80 °C
 EMC DIN EN 61326-2-3
 Shock resistance 30 g / 11 ms
 Vibration resistance 20 g (10...2000 Hz)
 Supply Voltage 16 ... 32 V DC
 Current Consumption < 60 mA
 Number of Switching Outputs 1
 Response Time 30 ms
 Relay Output < 1 A
 Analog Output 4...20 mA
 Signal source Pressure
 Resolution 10 bit
 Current Output Load Resistance < 500 Ohm
 Short Circuit Protection yes
 Reverse Polarity Protection yes
 Protection Class III
 Setting Method Menu
 Housing Material Plastic, PBT, Plastic, PC
 Material Control Panel Polyester
 Material in contact with media Stainless steel, V4A (1.4404 / 316L), Stainless steel, V4A (1.4435/316L), Rubber, FKM
 Degree of Protection IP67 *
 Connection M12 × 1; 5-pin
 Process Connection G 3/8"
 MTTFd 769.77 a
 Output Analog Output yes
 Relay -NO yes
 Adjustable parameters Circuit: NC, NC/NO, NO
 Other parameters Selectable measurement range, Switching point
